Header Punches & Punch Pins
Header punches, recess punch pins, punch cases, and special-shaped punch tooling manufactured from drawings.
Browse by Tooling Type
Review representative products by tooling function, then send drawings for a supplier evaluation.
Header Punches
Punch tooling for screw and bolt head forming.
Header Punches & Punch PinsTitanium-Coated Punch Pin for Brass and Metal PartsTitanium-coated punch pin tooling for brass and metal part forming. Jungu checks coating route, substrate support, contact pressure, material pickup, and wear pattern before quoting.

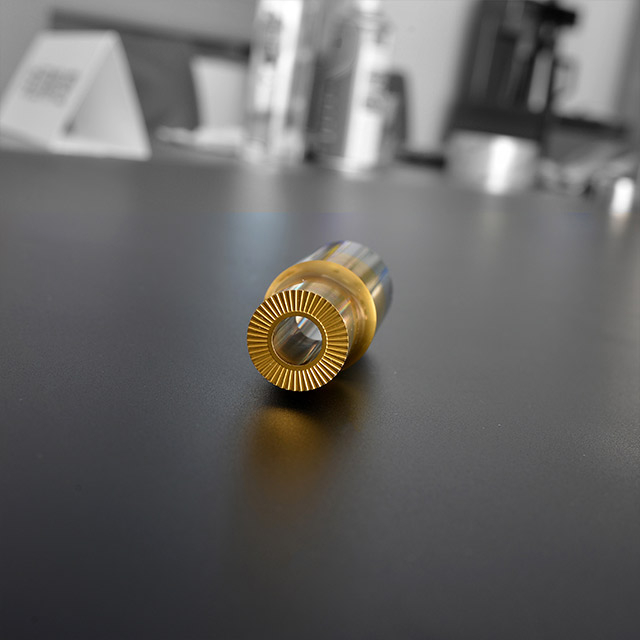

Header Punches & Punch PinsBrass Punch Pin for Metal and Auto PartsBrass punch pin tooling for metal and automotive-style component forming. Jungu checks punch diameter, surface requirement, material pickup, alignment, coating route, and wear pattern before quoting.

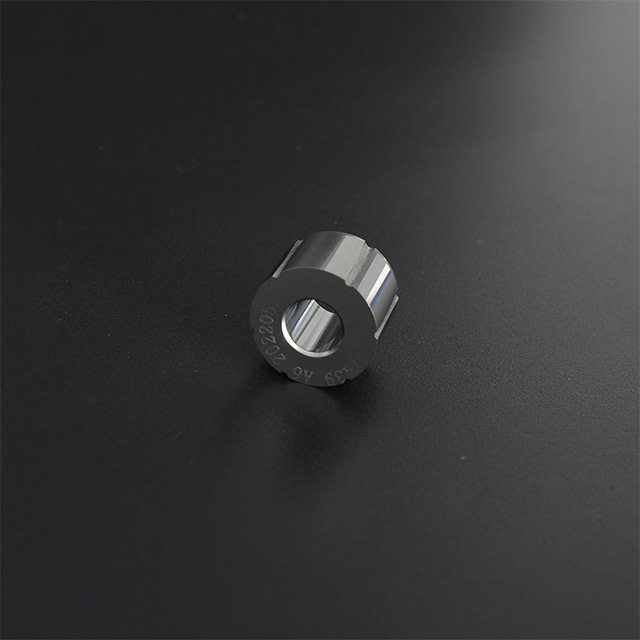

Header Punches & Punch PinsCarbide Die Core and Punch Set for Bolt DiesMatched carbide die core and punch set for bolt die assemblies. Jungu checks punch-to-die alignment, cavity support, material flow, and wear pattern before quoting.
Recess Punch Pins
Hex, flower-shape, and drive-recess punch pins.
Header Punches & Punch PinsHexagonal Punch Pin for Cold HeadingHexagonal punch pins for forming internal hex recesses during cold heading. Jungu checks recess depth, corner radius, punch alignment, material route, and breakage pattern.

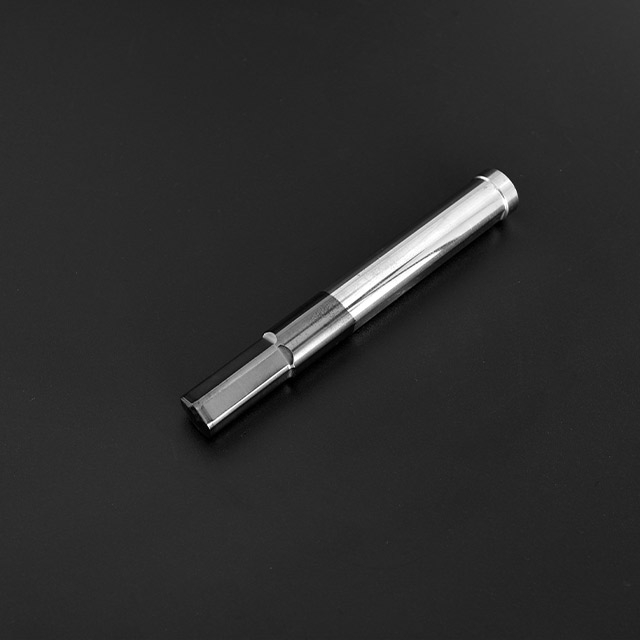

Header Punches & Punch PinsHexagonal Pin Punch Tool for Precision Recess FormingHexagonal pin punch tooling for socket or recess forming. Jungu checks hex corner radius, punch length, alignment, material route, coating, and broken-tip pattern before quoting.

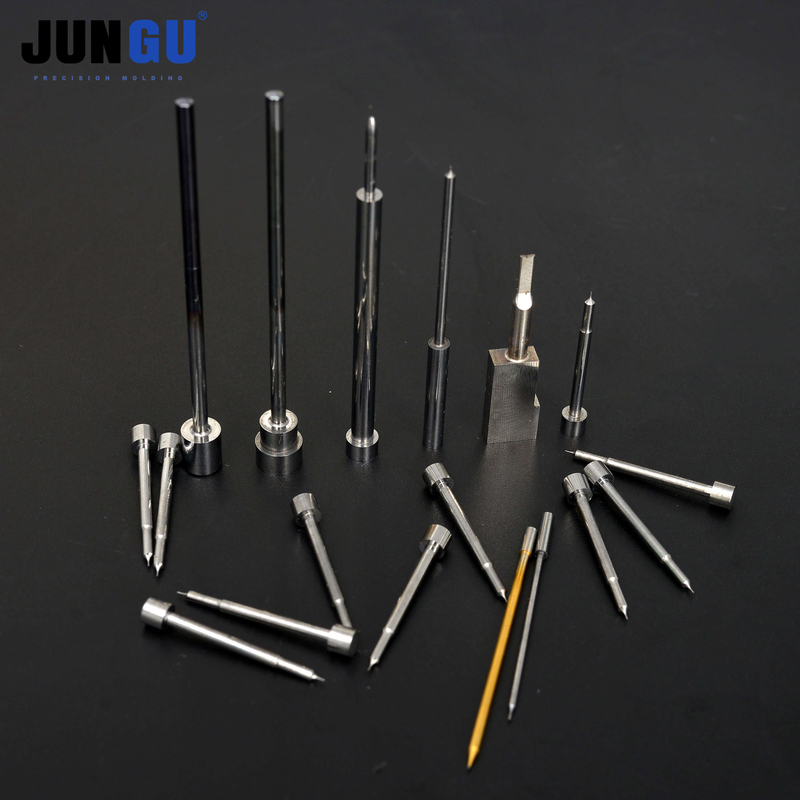

Header Punches & Punch PinsHexagon Hole Punch and Die SetHexagon hole punch and die set for internal recess or hole forming. Jungu checks punch corner radius, die support, alignment, material route, and broken-corner pattern before quoting.
Special-Shaped Punches
Custom and non-standard punch geometry made to drawing.

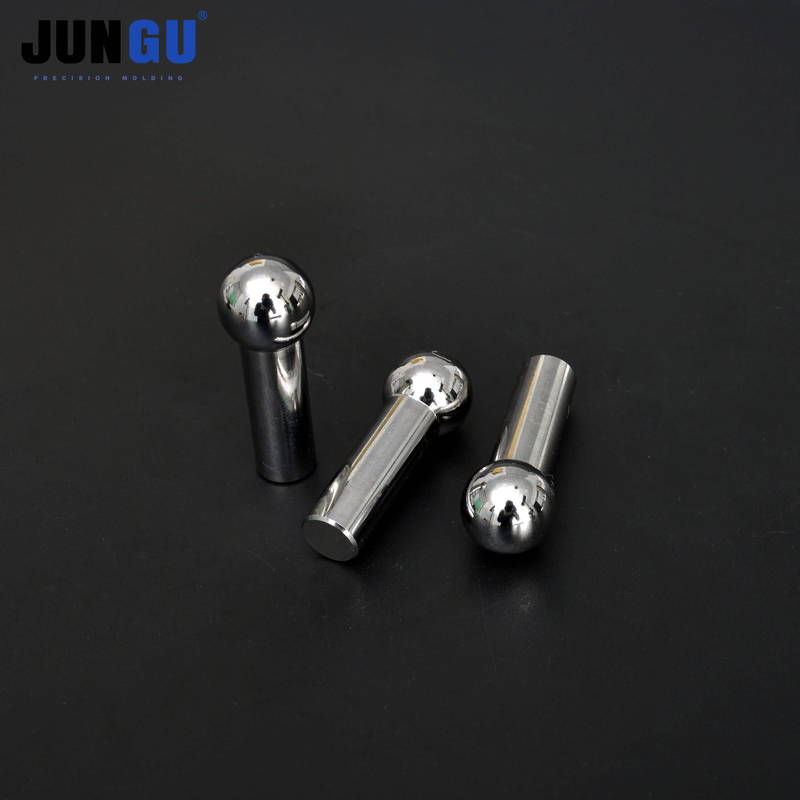

Header Punches & Punch PinsCustom Ball Head Punch Tool Pin PunchCustom ball head punch tool pins for special head forming and profile control. Jungu checks radius transition, punch alignment, impact load, and polishing requirement.

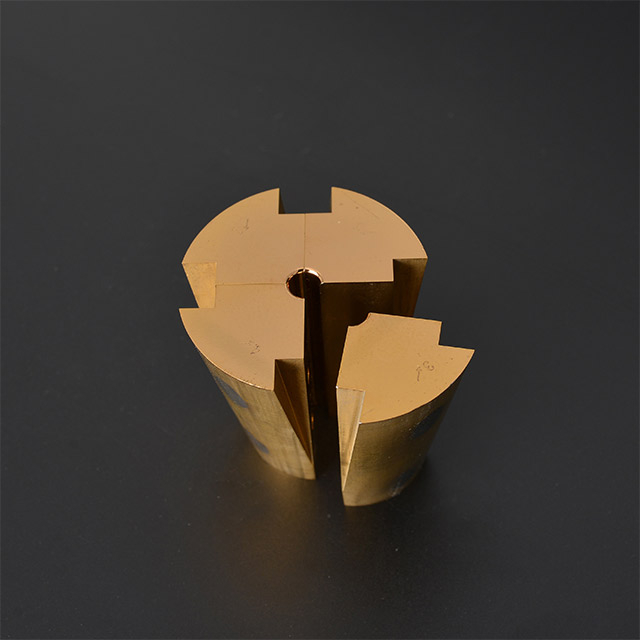

Header Punches & Punch PinsCustom Brass Forming Punch and Die SetCustom punch and die set for brass or non-ferrous cold forming. Jungu checks material pickup, surface marks, punch-die alignment, cavity finish, and release route before quoting.

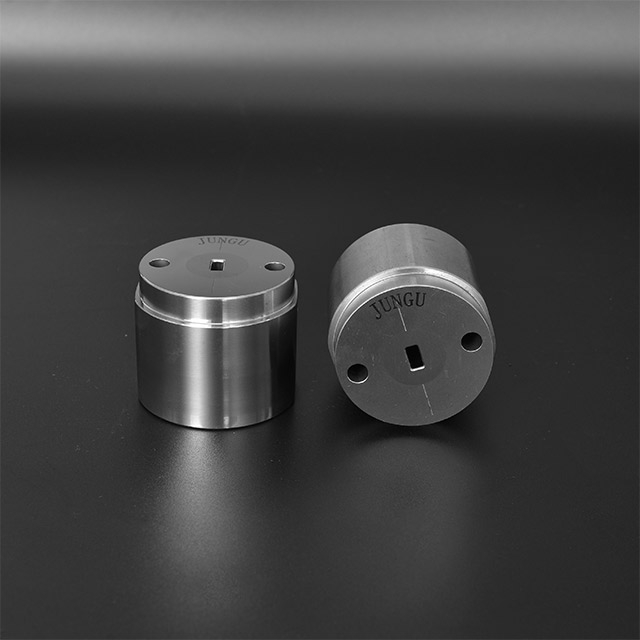

Header Punches & Punch PinsCustomized Cold Heading Punch ToolingDrawing-based cold heading punch tooling for custom fastener forming. Jungu checks station load, punch nose radius, material route, coating, alignment, and breakage pattern before quoting.
Punch Cases
Punch cases and supported punch tooling for cold heading machines.

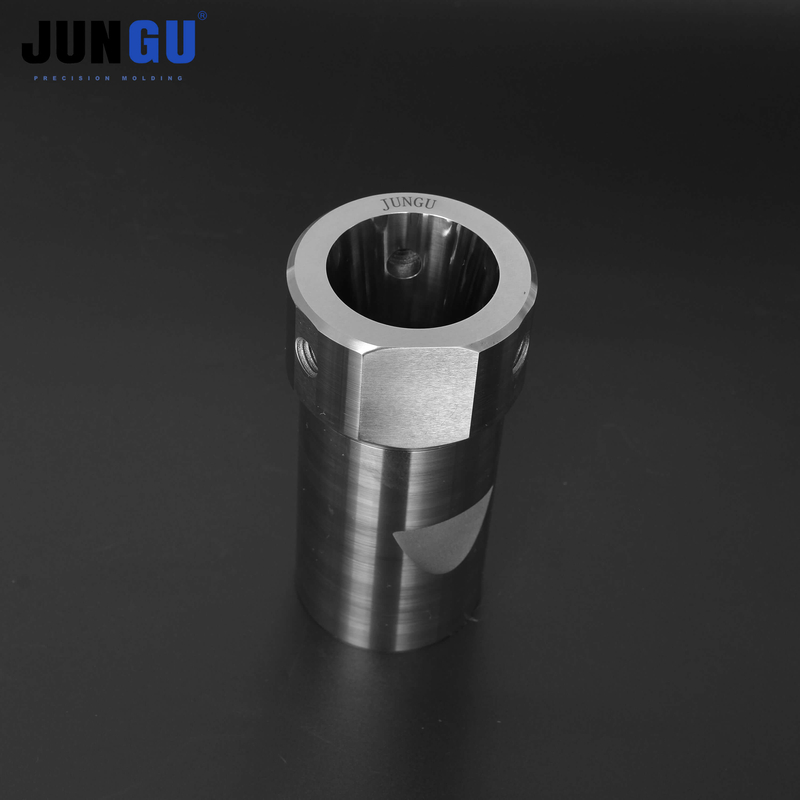

Header Punches & Punch PinsFirst Upset Punch Case for Multi-Station Screw MouldsFirst upset punch case for screw multi-station cold heading. Jungu checks first-station load, punch support, holder fit, blank volume, and breakage pattern before quoting.

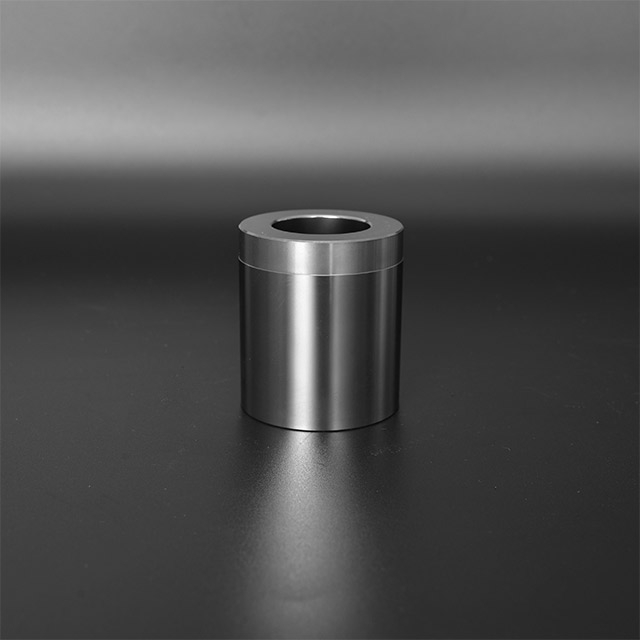

Header Punches & Punch PinsPunch Case for Bolt Die ToolingPunch case tooling for bolt die assemblies. Jungu checks punch support length, holder fit, clearance, station alignment, material route, and breakage pattern before quoting.
Custom capability
Materials: HSS, carbide, SKD, titanium-coated punch steel, and customer-specified materials. Jungu reviews critical dimensions, surface finish, coating, annual demand, and existing tooling failure before quotation.
Typical Applications
Bolt and screw head forming
Review the head or recess drawing together with punch length, holder fit, machine station, workpiece material, lubrication, and the current breakage or wear pattern.
Internal hex and drive recesses
Across-corners geometry, recess depth, draft, corner radius, and the buyer's gauge method define acceptance. Rejected-part and broken-tip photos help separate profile issues from alignment or support problems.
Supported punches and punch cases
Use a punch-case review when bore fit, supported length, holder alignment, fretting, bending, or off-centre forming may be contributing to repeat failures.
Need a custom Header Punches & Punch Pins review?
Send 2D or 3D drawings, material, machine model, annual volume, and current mould-life issue.
