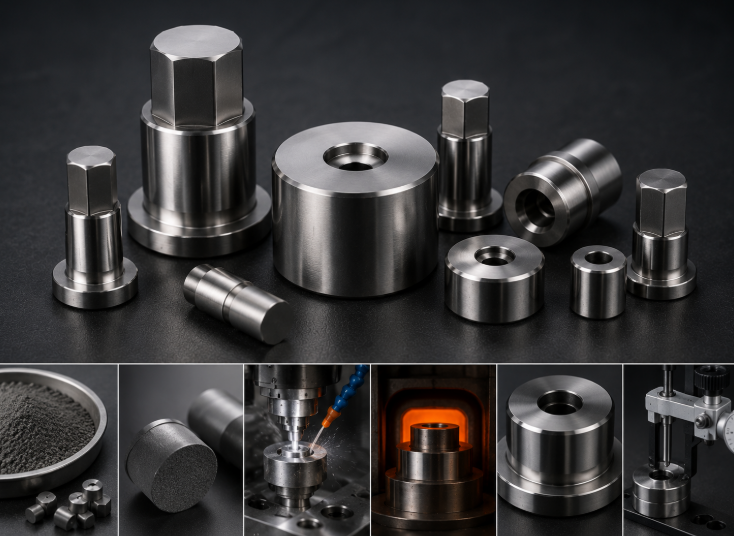

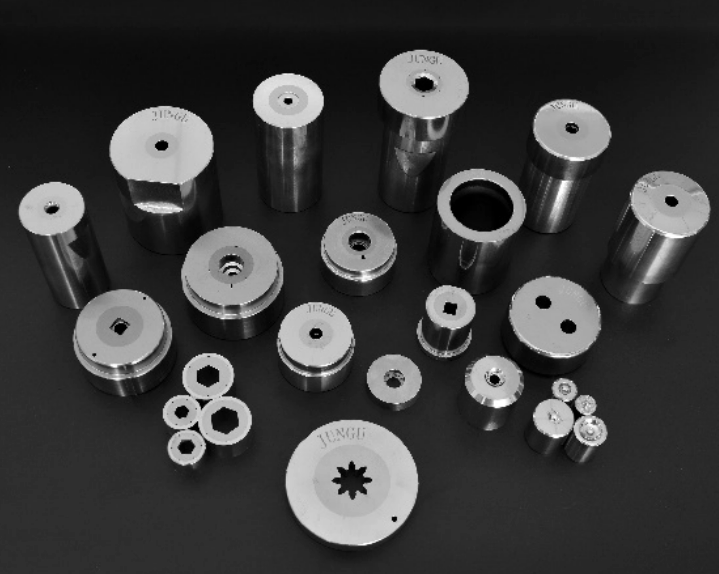

The manufacturing process of Tungsten Carbide Dies is a sophisticated sequence of metallurgical and machining steps—including material selection, powder metallurgy, rough machining, vacuum heat treatment, and precision finishing—designed to transform raw tungsten powder into a high-hardness, wear-resistant industrial tool capable of maintaining tight tolerances under extreme stress.
By meticulously controlling each phase of production, manufacturers can tailor the properties of the die to meet specific industrial requirements. This article provides a comprehensive analysis of the seven key stages involved in creating high-quality Carbide Dies, exploring how each step contributes to the final product's superior performance and longevity.
Material Selection: Laying the Foundation for Die Quality
Pre-treatment: Safeguarding the Machining Process
Rough Machining: Shaping the Basic Outline of the Die
Heat Treatment: The Key to Enhancing Die Performance
Finish Machining: Carving the Exquisite Details of the Die
Polishing: Endowing the Die with a Perfect Appearance and Excellent Performance
Quality Inspection: Guarding the Final Line of Die Quality
Material selection involves choosing the precise ratio of tungsten carbide (WC) particles and cobalt (Co) binder to ensure the Carbide Dies possess the necessary balance of hardness and fracture toughness required for specific industrial applications.
The foundation of every high-performance die starts with the raw material. Tungsten carbide is a composite material where the hard carbide particles provide wear resistance, while the metal binder (usually cobalt) provides the toughness needed to resist cracking. In the B2B manufacturing sector, selecting the right grade is not a one-size-fits-all process. It requires a deep understanding of the stresses the tool will face, such as impact, heat, and chemical exposure.
When comparing different materials, manufacturers often evaluate how Carbide Dies perform under load versus traditional materials. For instance, a higher cobalt content increases toughness but reduces hardness, making it suitable for heavy-duty heading dies. Conversely, a lower cobalt content results in a harder, more wear-resistant die ideal for high-speed wire drawing.
The following table illustrates common material grades used in the production of Carbide Dies:
Grade Type | Cobalt Content (%) | Hardness (HRA) | Primary Application |
Ultra-Fine Grained | 6% - 10% | 91 - 93 | Precision electronic stamping |
Fine Grained | 12% - 15% | 88 - 90 | Standard metal forming |
Medium-Coarse | 15% - 25% | 82 - 86 | Cold heading and heavy impact |
Selecting the wrong material can lead to premature tool failure, which significantly increases operational costs. This is why material selection is considered the most critical "quality gate" in the entire manufacturing cycle.
Pre-treatment is the essential phase where the raw carbide blank is inspected, cleaned, and prepared through stress-relieving processes to ensure that the material is stable and free from internal defects before any intensive machining begins.
Before the first cut is made, the carbide blank must undergo rigorous preparation. Because tungsten carbide is produced through powder metallurgy, internal porosities or inconsistent density can lead to catastrophic failure during the roughing or heating stages. Pre-treatment acts as a safeguard, ensuring the structural integrity of the material. This phase often involves ultrasonic cleaning to remove contaminants and specialized thermal soaking to homogenize the internal structure.
In many cases, the pre-treatment stage also includes the preparation of the steel casing if the carbide insert is to be shrink-fitted. Ensuring a perfect match between the carbide core and the steel jacket is vital for the longevity of Carbide Dies. This preparation prevents uneven stress distribution, which is a leading cause of die cracking in high-pressure environments.
Effective pre-treatment provides several key advantages:
Detection of Micro-fissures: Identifying surface cracks early prevents the waste of expensive machining hours on a defective blank.
Stress Equalization: Reducing residual stresses from the sintering process ensures the die maintains its shape during subsequent steps.
Enhanced Coating Adhesion: Proper cleaning ensures that any future PVD or CVD coatings bond perfectly to the surface.
Rough machining is the process of removing the bulk of the excess material from the carbide blank using techniques like CNC milling or EDM to create the primary shape and functional geometry of the Carbide Dies.
Once the material is prepared, the transformation from a blank to a tool begins. Since tungsten carbide is exceptionally hard, rough machining requires specialized equipment. Standard steel-cutting tools are ineffective; instead, manufacturers use diamond-tipped tools or Electrical Discharge Machining (EDM). During this stage, the focus is on speed and volume removal rather than microscopic precision. The goal is to get as close to the final dimensions as possible while leaving a specific "allowance" for the finish machining and heat treatment stages.
For complex geometries, wire EDM is often the preferred method. It allows for the creation of intricate internal profiles that would be impossible to mill. This stage is where the fundamental architecture of the Carbide Dies is established. It is important to note that roughing must be done carefully to avoid "white layer" formation—a brittle surface layer caused by the intense heat of the EDM process.
When designing these tools, engineers often refer to a comparison of tungsten carbide dies vs steel dies to determine the appropriate machining tolerances, as carbide exhibits different thermal expansion characteristics than steel.
Key considerations during rough machining:
Machining Allowance: Typically, 0.3mm to 0.5mm is left for final grinding.
Tool Path Optimization: Minimizing heat buildup to protect the cobalt binder.
Coolant Management: Using high-pressure synthetic oils to flush away carbide particles and maintain temperature stability.
Heat treatment, specifically vacuum sintering or HIP (Hot Isostatic Pressing), is the metallurgical process that bonds the carbide particles and binder together to achieve the final hardness and maximum density of the Carbide Dies.
Heat treatment is the "soul" of the manufacturing process. While the carbide blank is technically "hard" after initial sintering, secondary heat treatment or specialized sintering cycles are often used to optimize the grain structure. The use of Hot Isostatic Pressing (HIP) is particularly important for high-end Carbide Dies. By applying high pressure and temperature simultaneously in an inert gas atmosphere, the process eliminates any remaining micro-porosity, resulting in a nearly 100% dense material.
This increase in density directly translates to improved performance. A die that has undergone proper HIP treatment will have significantly higher fatigue strength and impact resistance. This is a primary reason why professionals choose carbide for demanding tasks; a well-treated carbide tool can last 50 to 100 times longer than a hardened steel equivalent. You can see more details on this in the Tungsten Carbide Dies vs Steel Dies Comparison Guide.
The heat treatment cycle generally follows these phases:
Pre-heating: Gradually raising the temperature to avoid thermal shock.
Sintering/Soaking: Maintaining high temperatures (approx. 1,400°C to 1,500°C) to allow the cobalt to liquefy and "wet" the carbide grains.
Controlled Cooling: Managing the cooling rate to prevent internal stresses and ensure a uniform grain size.
Finish machining utilizes high-precision diamond grinding, hard turning, and fine EDM to achieve the final tolerances, typically within microns, ensuring the Carbide Dies meet exact engineering specifications.
After hardening, the die is at its most difficult state to machine. Finish machining is where the "exquisite details" are realized. Every micron matters here, especially for components like cold-heading dies or precision extrusion dies where a deviation of 0.005mm can result in a rejected production batch. Diamond grinding wheels with specific grit sizes are used to achieve the desired dimensions and surface integrity.
Precision is the hallmark of high-quality Carbide Dies. Modern CNC grinders equipped with in-process gauging systems allow for real-time adjustments, ensuring that every die produced is identical. For internal diameters and complex cavities, "oil-cut" EDM provides a superior finish compared to standard water-based EDM, reducing the amount of manual polishing required later.
Key Finishing Operations:
Jig Grinding: For extremely accurate hole locations and roundness.
Cylindrical Grinding: To ensure perfect concentricity between the die core and the outer diameter.
Surface Grinding: To achieve parallelism and flat mating surfaces for die assemblies.
Achieving these tight tolerances is what distinguishes a professional-grade manufacturer. The precision found in these finished products is often highlighted when exploring a comparison between carbide and steel tooling, as carbide holds these dimensions much longer under wear.
Polishing is the final surface refinement stage that uses diamond pastes and abrasive media to remove microscopic machining marks, creating a mirror finish that minimizes friction and maximizes the life of the Carbide Dies.
While a die may look finished after grinding, it still possesses microscopic ridges and valleys known as surface roughness. In the world of high-pressure forming, these microscopic imperfections are "stress concentrators" where cracks can start. Polishing is not just about aesthetics; it is a functional requirement. A mirror-polished surface allows the workpiece material to flow smoothly over the die surface, reducing the heat generated by friction and preventing "galling" (where the workpiece material sticks to the die).
For Carbide Dies, the polishing process is often done in stages, starting with relatively coarse diamond paste (e.g., 9 micron) and finishing with ultra-fine paste (e.g., 0.25 micron). In many B2B applications, such as wire drawing or pill pressing, the surface finish must be Ra 0.05 or better.
The benefits of a superior polish include:
Reduced Pulling Force: In drawing applications, less energy is required to move material through the die.
Improved Product Quality: The finish of the die is directly transferred to the finished part (e.g., a shiny wire or a smooth bolt head).
Corrosion Resistance: A smoother surface has less surface area for chemical reactions to occur, slightly improving the die's resistance to environmental factors.
Quality inspection is the final validation phase where advanced metrology equipment, such as CMMs and profilometers, are used to confirm that the Carbide Dies meet all dimensional, structural, and surface finish requirements.
The manufacturing process is only complete once the quality has been verified. In a professional B2B environment, every die must be accompanied by an inspection report. Quality inspection involves multiple layers of testing. Dimensional inspection is performed using Coordinate Measuring Machines (CMM) and laser micrometers. Beyond dimensions, the "health" of the material is checked using non-destructive testing (NDT) such as ultrasonic or dye penetrant testing to ensure no cracks were introduced during machining or heat treatment.
Hardness testing (usually Rockwell A scale for carbide) is mandatory to ensure the heat treatment achieved the desired properties. Furthermore, surface profilometers are used to quantify the Ra value achieved during polishing. This rigorous approach ensures that when a client integrates Carbide Dies into their production line, they can do so with total confidence in the tool's performance.
Typical Inspection Checklist for Carbide Dies:
Dimensional Accuracy: Verification against CAD models or blueprints.
Concentricity and Runout: Essential for rotating tools or multi-stage dies.
Hardness Verification: Ensuring the grade meets the specified HRA or HV values.
Visual Inspection under Magnification: Checking for micro-chipping or surface irregularities.
Understanding the complexity of this final stage helps explain the value proposition discussed in the comprehensive guide to tungsten carbide vs steel dies, where quality assurance is a major factor in the total cost of ownership.
