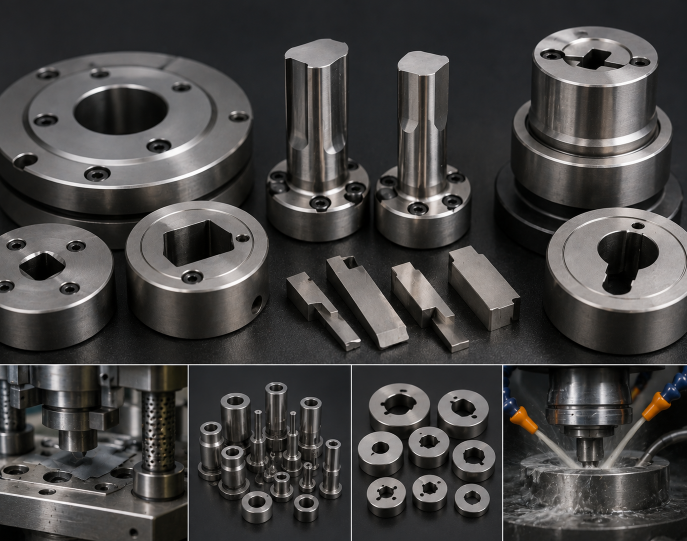

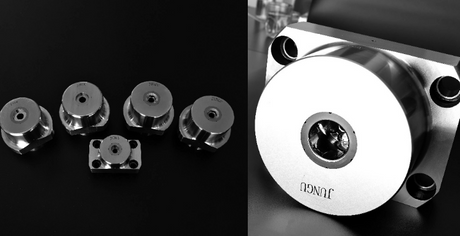

Characteristics and Machining of Carbide Die Components

Carbide die components are characterized by their exceptional hardness, superior wear resistance, and high compressive strength, making them the preferred choice for precision machining and heavy-duty industrial applications where dimensional stability is critical. Their unique metallurgical structure allows for a service life that significantly outlasts traditional tool steel, provided they are processed through specialized machining techniques like EDM and diamond grinding.

Understanding the relationship between the material characteristics of these components and the specialized techniques required to shape them is essential for any technical buyer or engineer. This article explores the mechanical advantages, thermal properties, and sophisticated machining workflows that define the high-performance world of carbide tooling. From corrosion resistance to diverse industrial applications, we provide a comprehensive look at why these components are the backbone of modern precision engineering.

Content Overview

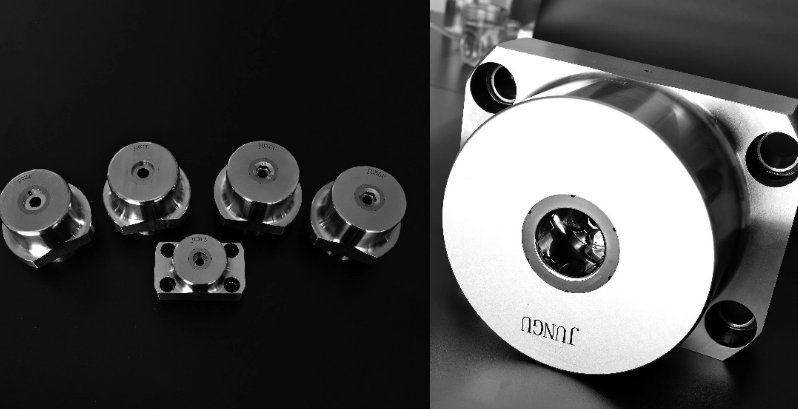

Outstanding Mechanical Properties

The mechanical superiority of carbide die components lies in their incredible hardness, often reaching 85 to 92 HRA, and a compressive strength that far exceeds that of most structural metals and alloys.

The primary reason engineers select these materials for critical tooling is their resistance to plastic deformation. When subjected to the massive pressures found in cold heading or deep drawing, standard steel tools may flex or lose their shape over time. Carbide, however, possesses a high modulus of elasticity, which ensures that the tool remains rigid. This rigidity is vital for maintaining the tight tolerances required in modern manufacturing. When evaluating Tungsten Carbide Dies vs Steel Dies, the mechanical longevity of carbide often translates to a lifespan ten to twenty times longer than its steel counterparts.

Furthermore, the wear resistance of these components is a result of the tungsten carbide grains being tightly bound by a metallic binder, usually cobalt. This composite structure allows the tool to resist abrasive wear caused by the constant flow of workpiece material across the die surface. In high-speed stamping operations, this means fewer tool changes and significantly reduced downtime, which directly impacts the bottom line of B2B manufacturing operations.

The toughness of the material can be tuned by adjusting the cobalt content. A higher cobalt percentage increases impact resistance, making the component less prone to chipping under shock loads, while a lower cobalt content maximizes hardness for purely abrasive environments. This customizability ensures that the mechanical properties can be perfectly matched to the specific stresses of the production line.

Assurance of Thermal Stability

Thermal stability in carbide die components ensures that the tool retains its physical properties and dimensional accuracy even when surface temperatures rise significantly due to high-speed friction.

In high-volume manufacturing, friction is an unavoidable byproduct. As a workpiece moves through a die at high velocity, kinetic energy is converted into heat. Traditional tool steels often undergo "softening" or tempering when they reach certain temperature thresholds, leading to rapid tool failure. Carbide, however, maintains its hardness at temperatures where steel would begin to fail. This red-hardness characteristic is essential for maintaining the integrity of Carbide Dies during continuous operation.

The coefficient of thermal expansion for tungsten carbide is also notably low—approximately half that of steel. This means that as the tool heats up during a shift, it expands much less than a steel tool would. For precision components like electronic connectors or medical device parts, even a few microns of thermal expansion can lead to out-of-tolerance products. Carbide’s thermal consistency ensures that the first part produced in the morning is identical to the last part produced at the end of a ten-hour shift.

Moreover, the high thermal conductivity of carbide helps in dissipating heat away from the working interface more efficiently than many other ceramic-based materials. When combined with proper cooling and lubrication systems, this stability prevents the occurrence of thermal cracking, a common failure mode in materials subjected to rapid heating and cooling cycles.

The Art of Precision Machining

Precision machining of carbide requires specialized non-traditional methods such as Electrical Discharge Machining (EDM) and diamond-abrasive grinding because the material is too hard for standard high-speed steel or even most carbide-tipped cutting tools.

Because carbide exists at the top of the hardness scale, "shaping" it is less about cutting and more about erosion or abrasion. Electrical Discharge Machining (EDM) is the standard for creating complex geometries within a carbide die. By using a series of electrical sparks to vaporize the material, EDM allows for the creation of intricate internal shapes and sharp corners that would be impossible to achieve through mechanical means. It is critical to manage the "white layer" or the recast layer during this process to ensure the surface integrity of the high-performance carbide tooling is not compromised.

Diamond grinding is the secondary essential process for achieving the mirror-like finishes required on functional surfaces. Since diamond is the only material significantly harder than tungsten carbide, diamond-impregnated wheels are used to grind the die to its final dimensions. This process requires high-precision equipment with extreme vibration damping to prevent micro-fracturing of the carbide substrate. A superior surface finish not only improves the quality of the final part but also reduces the friction coefficient, further extending the life of the tool.

Modern machining workflows often include:

1. Sinker EDM: For creating blind holes or complex 3D cavities.

2. Wire EDM: For precision profiling and through-hole cutting with micron-level accuracy.

3. Jig Grinding: For achieving perfect roundness and location in die holes.

4. Lapping and Polishing: Utilizing diamond paste to reach a Ra 0.05 surface finish or better.

The success of these processes depends on the technician's ability to balance material removal rates with the delicate nature of the carbide's binder phase. Proper machining and finishing for carbide tools is a blend of advanced technology and artisanal skill.

Corrosion Resistance Advantage

Carbide die components offer a significant advantage in chemical stability, resisting the oxidative and corrosive effects of industrial additives, humidity, and volatile lubricants found in the manufacturing environment.

In many metal-forming processes, the use of extreme pressure (EP) lubricants is necessary. These lubricants often contain sulfur, chlorine, or phosphorus additives that can be chemically aggressive toward standard tool steels. Over time, this lead to "pitting" or surface degradation, which increases friction and ruins the surface finish of the produced parts. Tungsten carbide is naturally inert to many of these chemicals. By utilizing a corrosion-resistant grade of carbide, which often replaces or supplements the cobalt binder with nickel or chromium, manufacturers can ensure their dies remain pristine even in "wet" or humid environments.

The corrosion resistance of carbide is particularly beneficial in the following scenarios:

1. Outdoor or High-Humidity Storage: Carbide tools are less likely to develop surface rust while waiting in the tool crib.

2. Aqueous Cleaning Cycles: The ability to withstand water-based cleaning agents without degrading.

3. Chemical Processing: In applications where the die might come into contact with mildly acidic or alkaline materials.

When analyzing the long-term durability of carbide vs steel, the ability to resist chemical attack is often overlooked but remains a vital factor in maintaining the tool's geometric precision over years of service.

Expansion of Application Fields

The application of carbide die components has expanded from basic wire drawing to complex roles in the automotive, aerospace, electronics, and medical industries due to their ability to produce millions of parts with zero dimensional drift.

As industries move toward "micro-manufacturing," the demand for carbide has skyrocketed. In the electronics sector, carbide dies are used to stamp out the incredibly small and thin lead frames used in semiconductor packaging. These parts require tolerances measured in microns, which only carbide can consistently provide over long production runs. Similarly, in the automotive industry, the drive toward high-strength steels for vehicle frames requires die materials that can withstand the extreme pressures needed to form these tougher metals without wearing out prematurely.

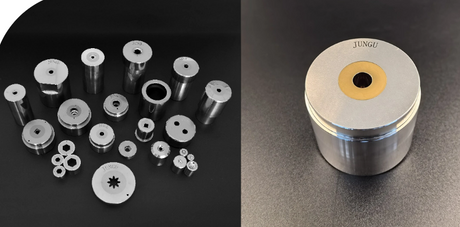

Key Industrial Applications

1. Fastener Manufacturing: Cold heading dies for screws, bolts, and rivets benefit from the high impact resistance of specialized carbide grades.

2. Wire and Tube Drawing: Carbide nibs provide the smooth, wear-resistant surface necessary to reduce the diameter of metal wires with perfect uniformity.

3. Battery Production: Stamping components for lithium-ion battery housings requires the extreme precision and speed that only carbide tooling can sustain.

4. Medical Components: Small, intricate parts for surgical instruments are often formed using carbide because of the material's cleanliness and precision.

The versatility of this material continues to grow as new powder metallurgy techniques allow for even more specialized grades. Choosing the right carbide die solution involves understanding the specific demands of these diverse fields and selecting a grade that balances hardness, toughness, and chemical resistance.
