What's The Difference Between Roll Threading vs Cut Threading Bolts?

Roll-Threading Bolts

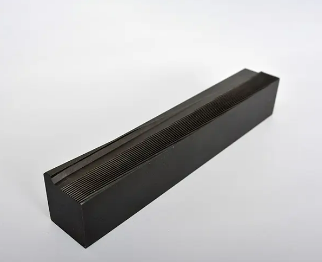

Roll threading is a cold-forming manufacturing process where a bolt blank is pressed between hardened steel thread rolling dies to displace the metal and create a thread profile without removing any material.

In the roll threading process, the bolt blank—which usually has a diameter slightly smaller than the finished major diameter—is rotated between two or more thread rolling dies. These thread rolling dies feature the inverse profile of the desired thread. As the dies exert massive hydraulic or mechanical pressure, the metal of the blank "flows" into the valleys of the thread rolling dies, effectively pushing the metal upward to form the crests of the threads. This method is the industry standard for mass-produced fasteners due to its speed and the superior mechanical properties it imparts to the finished product.

Because no material is removed, the volume of the bolt remains constant. The use of high-quality thread rolling dies ensures that the dimensions are incredibly consistent across millions of units. This cold-working process also hardens the surface of the threads, increasing their resistance to wear and stripping. In a B2B manufacturing context, utilizing thread rolling dies allows for high-speed production lines that can output thousands of bolts per hour with minimal waste, making it the most cost-effective solution for large-scale industrial projects.

Furthermore, the smooth finish produced by thread rolling dies reduces friction during assembly. Unlike cut threads, which may have microscopic jagged edges, rolled threads are burnished by the pressure of the thread rolling dies. This results in a surface finish that is often twice as smooth as a cut thread, which is vital for applications requiring precise torque-to-tension ratios. When the thread rolling dies are maintained correctly, the resulting bolts exhibit exceptional dimensional stability and a professional aesthetic that is highly valued in the tactical optics and high-end hardware sectors.

Cut-Thread Bolts

Cut threading is a subtractive machining process where a cutting tool or a die is used to physically remove steel or other alloys from a round bar to carve out the thread grooves.

The cut threading process is traditional and versatile. It involves taking a rod that is already at the final major diameter of the bolt and using a lathe or a threading machine to strip away the "valleys" of the threads. This process severs the natural grain flow of the metal. While it is slower than using thread rolling dies, cut threading is often the only viable option for very large diameter bolts, custom pitches, or small batch orders where the cost of custom thread rolling dies would be prohibitive.

One of the primary characteristics of cut threading is that it can be performed on almost any hardened material, whereas roll threading requires the material to have some level of ductility to flow into the thread rolling dies. In industrial machinery repair or low-volume manufacturing of chemical intermediate processing equipment, cut threading allows for immediate production without the lead time required to manufacture specific thread rolling dies. However, because material is removed, there is a significant amount of scrap produced in the form of metal shavings or "swarf."

The surface of a cut thread is naturally rougher than one formed by thread rolling dies. Under a microscope, the valleys of cut threads show tiny "tear" marks where the tool has pulled material away. These micro-fissures can act as stress concentration points. While cut threading is perfectly adequate for many static load applications, it lacks the fatigue resistance provided by the cold-working action of thread rolling dies. Consequently, for dynamic environments like automotive suspensions or vibrating industrial vibrators, cut threads are often avoided in favor of rolled alternatives.

Differences Between Rolled Threads and Cut Threads

The fundamental differences between rolled and cut threads revolve around grain flow, surface integrity, manufacturing speed, and the diameter of the initial starting material.

The most significant technical difference is the internal grain structure. When thread rolling dies are used, the grain lines of the steel are contoured to follow the shape of the thread, creating a continuous flow that reinforces the thread against shear forces. In contrast, cut threading severs these grain lines, leaving the ends of the grain exposed at the thread face. This difference in grain architecture is why bolts formed with thread rolling dies are significantly stronger in terms of fatigue and impact resistance.

Another major distinction is the starting diameter of the rod. For cut threading, the rod must match the major (outer) diameter of the thread. For roll threading using thread rolling dies, the rod diameter is roughly equal to the pitch diameter (the midpoint between the crest and the valley). This means that for the same size bolt, a rolled thread uses less raw material than a cut thread. Over a production run of 100,000 units, the material savings enabled by thread rolling dies can result in thousands of dollars in cost reductions, a key factor for B2B procurement managers.

The following table summarizes the key comparative metrics:

Does Cut Threading Weaken Bolts?

Cut threading does not necessarily make a bolt "weak" in terms of static load, but it does result in a lower fatigue strength and higher susceptibility to crack propagation compared to threads formed by thread rolling dies.

When a bolt is cut, the removal of material creates "stress risers" at the root of the thread. Because the cutting tool leaves a relatively sharp corner at the bottom of the V-shape, stress tends to concentrate in that specific area. Without the compressive residual stresses provided by thread rolling dies, these points are where cracks are most likely to begin. In high-cycle vibration applications, a cut-thread bolt will almost always fail before a bolt that was processed through thread rolling dies.

Furthermore, the lack of work-hardening is a disadvantage. As the thread rolling dies compress the metal, the surface becomes harder and more resistant to deformation. Cut threads remain at the base hardness of the original rod. In many engineering specifications for aerospace or heavy construction, the use of thread rolling dies is mandated precisely because the "weakness" of cut threads—their vulnerability to fatigue—is considered a safety risk.

However, it is important to note that for many B2B applications, such as anchoring structural steel in buildings where the load is constant and non-vibrating, cut threads are perfectly acceptable. The perceived "weakness" is relative. A cut thread is only weak when compared to the enhanced mechanical profile produced by thread rolling dies. If the application involves high-frequency movement, thermal expansion, or sudden impact, the structural advantage of using thread rolling dies becomes a non-negotiable requirement for long-term durability.

Does Roll-Threading Deform Rods?

Roll-threading does not "deform" the rod in a negative sense; rather, it intentionally reshapes the outer layers of the rod through controlled plastic deformation using thread rolling dies to reach the final dimensions.

The process is often called "thread extrusion." When the thread rolling dies press into the metal, the material has to go somewhere. It is forced outward to form the peaks of the threads. Because of this, the final major diameter of a rolled bolt is actually larger than the diameter of the rod it started from. This is not a defect but a planned engineering outcome. High-precision thread rolling dies are designed to control this movement so that the final thread meets strict tolerance standards (such as Class 2A or 3A fits).

If the starting rod diameter is incorrect, or if the thread rolling dies are worn, the "deformation" can lead to issues like "fanned" threads or incomplete crests. However, when executed correctly, the deformation caused by thread rolling dies is the source of the bolt’s strength. The cold-working of the metal increases the yield strength of the surface material. This structural transformation is a highly desirable form of "deformation" that differentiates premium fasteners from standard ones.

In modern manufacturing, particularly for products like CNC router components or high-pressure valves, the precision of the thread rolling dies ensures that the rod remains perfectly straight despite the massive forces involved. Some might worry that the pressure from thread rolling dies could bend the bolt, but industrial rolling machines use supporting rollers and synchronized timing to ensure the bolt remains coaxial. The result is a highly accurate, incredibly strong fastener that maintains its geometric integrity far better than a piece that has been subjected to the heat and friction of high-speed cutting.
