Author: Site Editor Publish Time: 2026-03-20 Origin: Site
Section | Summary |
Understanding Thread Rolling | A comprehensive look at the cold-forming process where metal is displaced rather than removed to create helical grooves. |
Benefits of Thread Rolling | An analysis of the mechanical advantages, including grain flow preservation, surface finish quality, and cost-efficiency. |
Applications of Thread Rolling | Identification of key industries such as automotive and renewable energy where high-strength fasteners are non-negotiable. |
The Thread Rolling Process | A technical breakdown of how cylindrical workpieces interact with various die configurations to achieve precision. |
Thread Rolling Material | A guide to selecting ductile materials and alloys that respond best to the intense pressures of cold-working. |
Thread Rolling vs. Thread Cutting | A direct comparison of strength, speed, and material utilization between formative and subtractive methods. |
Thread rolling is a cold-forming manufacturing process that creates threads by displacing metal through the use of hardened steel thread rolling dies rather than removing material through cutting or grinding.
At its core, thread rolling is an exercise in metal displacement. When a cylindrical blank is pressed between rotating or reciprocating thread rolling dies, the high pressure forces the material to flow into the grooves of the die. This creates the "roots" and "crests" of the thread. Because the metal is cold-worked, the internal structure of the fastener is physically altered, leading to a denser and more resilient end product.
The precision of this process depends heavily on the quality of the tooling used. Manufacturers utilize various types of thread rolling dies, including flat dies, planetary dies, and cylindrical dies, depending on the machinery and the specific geometry of the part. Each die profile is a mirror image of the desired thread, ensuring that the finished product meets exact international standards such as ISO or ANSI.
Unlike machining, which breaks the natural grain of the metal, rolling compacts the grain. This microscopic reorganization is what gives rolled threads their legendary durability. As industrial demands for "light-weighting" and higher safety factors increase, understanding the physics of this displacement becomes essential for any B2B entity involved in heavy machinery or precision engineering.
The primary benefits of thread rolling include increased tensile and shear strength, superior surface finish, improved fatigue resistance, and significant material savings due to the elimination of metal chips and waste.
One of the most significant advantages of using thread rolling dies is the increase in thread strength. During the process, the cold-working of the metal increases the yield strength of the material by 10% to 30%. Because the grain fibers are not cut but are instead folded to follow the contour of the thread, the fastener becomes much more resistant to stripping and shear forces.
Fatigue failure often begins at the root of a thread where stress concentrations are highest. Thread rolling induces compressive residual stresses at the roots. These stresses act as a shield against the tension that causes cracks, allowing rolled bolts to last up to five times longer than cut bolts in high-vibration environments.
Rolled threads typically achieve a surface finish of 8 to 32 micro-inches. This smoothness reduces friction during assembly, which translates to more consistent torque-tension relationships. A smoother surface also means fewer microscopic burrs or "tears" that could serve as initiation points for corrosion or mechanical failure.
Because thread rolling is a high-speed process—often capable of producing hundreds of parts per minute—it is far more economical for mass production. Furthermore, because the outer diameter of the blank is smaller than the finished major diameter (the material "grows" into the die), manufacturers can save approximately 15% to 20% on raw material costs compared to cutting methods.
Thread rolling is utilized in critical applications requiring high-performance fasteners, including automotive engine components, aerospace airframes, heavy construction machinery, and specialized medical implants.
In the automotive sector, safety and reliability are paramount. Components such as wheel studs, engine cylinder head bolts, and steering system fasteners are almost exclusively produced using thread rolling dies. The high vibration and thermal cycling experienced in vehicles require the fatigue resistance that only cold-formed threads can provide.
Aerospace fasteners must withstand extreme pressures and temperature fluctuations. Titanium and high-nickel alloys are often processed through thread rolling to ensure that the threads do not fail under the intense G-forces of takeoff or the vacuum of space. The consistency offered by precision thread rolling dies ensures every bolt meets the stringent "zero-failure" aerospace protocols.
Large-scale infrastructure projects, such as bridges and skyscrapers, rely on high-tensile anchors and tie rods. Thread rolling allows for the production of large-diameter threads on long bars without sacrificing the structural integrity of the steel. This is essential for maintaining the long-term load-bearing capacity of modern architectural marvels.
The wind energy sector uses massive bolts to secure turbine blades and tower segments. These fasteners are subject to constant, fluctuating wind loads. Thread rolling provides the necessary durability to prevent "bolt creep" and ensures that these offshore and onshore structures remain secure for their 20 to 30-year lifespans.
The thread rolling process involves feeding a cylindrical blank into a set of precision-engineered thread rolling dies, where high pressure is applied to deform the blank into a threaded profile through rotation or linear movement.
The process begins with the selection of the correct thread rolling dies. There are three main types of setups used in modern manufacturing:

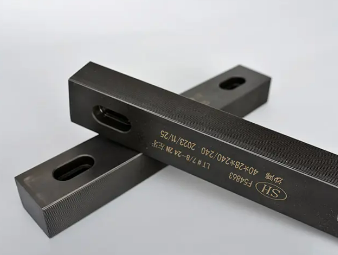

Flat Die Rolling: Used primarily for bolts and screws, where the blank rolls between one stationary and one reciprocating flat die.
Two-Roll Cylindrical Rolling: Ideal for larger diameters, where the workpiece is supported on a rest blade between two rotating cylindrical dies.
Three-Roll Cylindrical Rolling: Used for thin-walled tubes or hollow parts to prevent crushing while applying even pressure.
As the machine cycles, the thread rolling dies penetrate the surface of the blank. The pressure causes the metal to undergo plastic deformation. The displaced metal flows upward to form the crests of the thread while the die teeth create the roots. This phase must be carefully controlled; if the pressure is too low, the threads will be incomplete; if too high, the material may suffer from internal stress cracks.
Maintaining the integrity of the thread rolling dies is the most critical part of the process. Even minor wear on the die profile can lead to dimensional inaccuracies in the pitch diameter or lead. Advanced sensors often monitor the rolling force in real-time to ensure that each part produced falls within the required tolerance levels, ensuring a 100% reliable output for high-volume orders.
Materials suitable for thread rolling must possess sufficient ductility and a maximum hardness level, typically below 40 HRC, to allow for plastic deformation without causing premature wear on the thread rolling dies.
For a material to be rolled successfully, it must be able to flow under pressure. Materials with an elongation factor of 12% or higher are generally considered ideal. Low-carbon steels, stainless steels (such as 304 and 316), and aluminum alloys are the most common candidates. If a material is too brittle, it will snap or crumble under the pressure of the thread rolling dies instead of forming a clean thread.
While it is possible to roll harder materials, it significantly reduces the lifespan of the thread rolling dies. Most industrial rolling is performed on materials in their annealed or normalized state. If a high-strength fastener is required, it is often rolled first and then heat-treated, although "warm rolling" is an advanced technique used for specific super-alloys to balance formability and final strength.
Material Category | Examples | Rollability Rating | Why Use? |
Low Carbon Steel | 1018, 1020 | Excellent | High ductility, low cost. |
Alloy Steel | 4140, 4340 | Good | High strength after heat treat. |
Stainless Steel | 304, 316 | Fair to Good | Corrosion resistance. |
Aluminum Alloys | 6061, 7075 | Excellent | Lightweight, high speed. |
Copper/Brass | C360, C110 | Excellent | Electrical conductivity. |
The fundamental difference is that thread rolling is a formative process that displaces metal to create strength, whereas thread cutting is a subtractive process that removes metal, resulting in weaker grain structures and higher material waste.
In thread cutting, the tool slices through the longitudinal grains of the metal. This leaves the "ends" of the grain exposed at the flanks of the thread, creating natural weak points. Conversely, using thread rolling dies forces the grain to follow the contour of the thread. This "unbroken" grain flow is the primary reason rolled threads have significantly higher resistance to stripping and fatigue.
Cutting tools inevitably leave "tear marks" or tool chatter on the surface of the thread. These microscopic irregularities increase friction during fastening, which can lead to galling—especially in stainless steel applications. Thread rolling acts like a burnishing operation, polishing the surface as it forms. This results in a mirror-like finish that allows for smoother assembly and more accurate tensioning.
When comparing production times, thread rolling is the clear winner for B2B scale operations. A CNC lathe cutting a thread may take several seconds or even minutes for complex profiles, while a machine equipped with high-speed thread rolling dies can finish the same task in a fraction of a second. Additionally, because rolling requires a smaller diameter blank, the "swarf" or scrap metal associated with cutting is completely eliminated, leading to a greener and more cost-effective factory floor.
In conclusion, thread rolling stands as the superior method for high-performance fastener production due to its unmatched ability to improve mechanical properties while maintaining high efficiency and low waste.
The transition from traditional machining to cold-forming represents a significant leap in manufacturing philosophy. By prioritizing the preservation of material integrity, industries can produce components that are not only cheaper to manufacture but also safer for the end-user. The role of precision thread rolling dies cannot be overstated, as they are the catalyst for this transformation, turning raw metal into high-strength industrial hardware.
As we look toward the future of manufacturing, the demand for precision, speed, and sustainability will only grow. Thread rolling addresses all three pillars by optimizing raw material usage and delivering products that withstand the test of time. For any business focused on quality, adopting or sourcing rolled threads is no longer just an option—it is a competitive necessity in the global market.
Professional thread rolling services provide customized solutions for complex fastening needs, utilizing state-of-the-art thread rolling dies to produce high-precision components that adhere to strict international quality standards.
When selecting a partner for thread rolling, it is essential to evaluate their tooling capabilities. High-quality thread rolling dies made from premium tool steels (like D2 or M2) are the foundation of a successful production run. A professional service provider will offer a range of die profiles, from standard metric and unified threads to specialized Acme, buttress, or ball screw geometries, ensuring that your specific engineering requirements are met with micron-level accuracy.
Beyond just the machinery, expert services include material consultation and process optimization. Engineers can help determine the ideal blank diameter and material hardness to maximize the lifespan of the thread rolling dies and ensure the final product exceeds performance expectations. Whether you are looking for small-batch prototypes or million-unit production runs, professional thread rolling ensures that every thread is a perfect reflection of the intended design.
