What is Roller Thread Dies and How Do They Work?

What Are Roller Thread Dies?

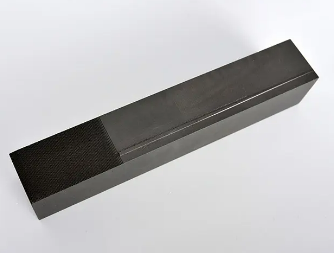

Roller thread dies are specialized hardening steel tools, typically cylindrical or flat in shape, featuring a precise helical or annular profile on their outer surface designed to mirror the desired thread form on a metal blank. These {thread rolling dies} act as the master mold in a cold-forming process, pressing into a rotating or sliding workpiece to reform its surface into a threaded geometry through controlled plastic flow.

At the core of modern fastener manufacturing, {thread rolling dies} represent the pinnacle of cold-work tool steel engineering. These dies are manufactured from high-grade materials such as D2, M2, or specialized powder metallurgy steels to withstand the immense compressive forces required to move metal at room temperature. The surface of the die is ground to extreme tolerances, ensuring that the pitch, angle, and lead of the resulting thread meet international standards like ISO or ANSI.

The configuration of {thread rolling dies} varies depending on the machinery used. Cylindrical dies are commonly used in two-roll or three-roll machines for long-threaded rods or large-diameter bolts, while flat dies are the standard for high-speed reciprocating machines that produce standard screws. Regardless of the shape, the function remains the same: to act as a hardened "negative" of the thread that is forced into a softer "positive" blank.

In the context of industrial supply, finding the right {thread rolling dies} involves matching the die material and coating to the hardness of the workpiece. For instance, rolling stainless steel requires different surface treatments, such as nitriding or TiN coating, compared to rolling mild carbon steel. This ensures that the {thread rolling dies} do not suffer from premature wear or "galling" during high-speed production runs.

How Roller Thread Dies Differ from Traditional Threading Tools

The fundamental difference lies in the method of formation: traditional threading tools like taps and chasers use a subtractive cutting process that severs metal fibers, whereas {thread rolling dies} utilize a non-subtractive forming process that compresses and redirects metal fibers. This distinction ensures that threads produced by {thread rolling dies} are inherently stronger because the grain flow of the metal remains continuous and follows the contour of the thread profile.

When using a cutting tool, the machine removes a "chip" of material to create the valley of the thread. This process inevitably leaves microscopic "tear" marks and burrs on the surface. In contrast, {thread rolling dies} apply pressure that forces the metal in the "valleys" to flow upward to form the "crests." Because no material is lost, the starting blank diameter for a rolled thread is roughly equal to the pitch diameter of the finished thread, rather than the major diameter.

From a structural standpoint, the difference is measurable. Because {thread rolling dies} cold-work the metal, they induce compressive residual stresses at the root of the thread. This makes the fastener significantly more resistant to fatigue and stripping. In high-vibration environments, a rolled thread produced by {thread rolling dies} will consistently outlast a cut thread of the same material and dimensions.

Comparison Table: Thread Rolling vs. Thread Cutting

Principles of Operation for Roller Thread Dies

The operation of {thread rolling dies} is based on the principle of plastic deformation, where the die exerts pressure exceeding the yield strength of the workpiece material to cause it to flow into the die's grooves. This mechanical process is typically performed on cold-heading or specialized rolling machines where the blank is squeezed between two or more {thread rolling dies} until the full thread depth is achieved.

The physics behind {thread rolling dies} is fascinating. As the die enters the metal, it creates a displacement zone. The metal displaced from the thread root is forced radially outward to form the crest. This requires precise calculation of the blank diameter; if the blank is too large, it will overfill the {thread rolling dies} and cause machine breakage; if too small, the thread crests will be "empty" or truncated.

In a cylindrical two-die system, the workpiece is supported on a work-rest blade between two rotating {thread rolling dies}. One die is stationary while the other moves inward under hydraulic pressure. As the workpiece rotates, the threads are gradually formed. In a flat die system, the blank is rolled between one stationary and one reciprocating flat {thread rolling dies}, finishing the entire thread in a single stroke.

Temperature management and lubrication are critical during the operation of {thread rolling dies}. Although it is a "cold" process, the friction and internal molecular movement generate significant heat. High-quality sulfurized or chlorinated oils are used to lubricate the interface between the {thread rolling dies} and the workpiece, ensuring a smooth finish and preventing the metal from sticking to the die surface.

Key Factors in the Rolling Process

1. Blank Diameter Control: Must be precisely calculated based on the volume of the thread profile.

2. Pressure and Penetration Rate: Controlled to ensure the metal flows evenly without cracking.

3. Synchronization: For cylindrical {thread rolling dies}, the rotation must be perfectly timed to ensure the starts of the threads align correctly.

Applications and Industries Using Roller Thread Dies

{Thread rolling dies} are utilized across any industry that requires high-strength, high-precision fasteners and threaded components produced at scale, including the automotive, aerospace, construction, and medical sectors. Because the resulting threads are more durable and the process is more cost-effective for mass production, {thread rolling dies} are the preferred choice for safety-critical components.

In the automotive industry, {thread rolling dies} are used to manufacture engine head bolts, wheel studs, and suspension components. These parts are subject to extreme heat and constant vibration. The fatigue resistance provided by the rolled thread ensures that the bolts do not loosen or fail under stress. Furthermore, the speed of {thread rolling dies} allows automotive suppliers to meet the demand for millions of units annually.

The aerospace sector relies on {thread rolling dies} for exotic alloy fasteners made from titanium or Inconel. In these applications, the weight-to-strength ratio is vital. By using {thread rolling dies}, engineers can specify smaller, lighter fasteners that provide the same holding power as larger cut-thread bolts. The precision of the {thread rolling dies} ensures that every thread meets the rigorous tolerances required for flight safety.

Beyond heavy industry, {thread rolling dies} are also prevalent in the production of consumer goods and infrastructure. This includes everything from the stainless steel screws in your smartphone to the massive rebar couplers used in skyscraper foundations. The versatility of {thread rolling dies} allows them to handle materials ranging from soft aluminum and brass to hardened alloy steels.

Common Industry Use Cases

1. Automotive: Transmission bolts, steering rack components, and spark plug shells.

2. Aerospace: Turbine housing bolts, airframe fasteners, and hydraulic fittings.

3. Construction: Anchor bolts, threaded rods, and high-strength structural connectors.

4. Energy: Drill pipe threads for oil and gas, and fasteners for wind turbine blades.

Benefits of Using Roller Thread Dies in Manufacturing

The primary benefits of utilizing {thread rolling dies} include significantly increased tensile and fatigue strength of the threads, substantial material cost savings, superior surface finish, and unmatched production speeds. By eliminating the waste associated with metal chips and reducing the time required per part, {thread rolling dies} offer a superior return on investment for high-volume manufacturers.

One of the most overlooked advantages of {thread rolling dies} is the improvement in surface integrity. The rolling process burnishes the thread surface, removing the microscopic irregularities that act as stress risers in cut threads. This smooth finish not only looks better but also reduces friction during assembly, allowing for more accurate torque-tension relationships in critical joints.

Material savings are another major driver for switching to {thread rolling dies}. Since the blank diameter is smaller than the finished major diameter, a manufacturer can save up to 15% to 20% in raw material weight compared to cutting. When multiplied across millions of fasteners, the cost savings on steel, brass, or titanium are massive, directly impacting the bottom line.

Moreover, the durability of the {thread rolling dies} themselves is a benefit. Because they are forming rather than cutting, they do not have a "sharp edge" that can dull or chip in the traditional sense. While they eventually wear down due to fatigue, a single set of high-quality {thread rolling dies} can often produce hundreds of thousands—or even millions—of parts before requiring replacement or regrinding.

Summary of Advantages

• Strength: Cold-working increases hardness at the thread root.

• Economy: No scrap metal chips are produced; smaller blanks used.

• Quality: High dimensional accuracy and mirror-like surface finish.

• Efficiency: Cycle times are measured in fractions of a second.

• Reliability: Reduced risk of thread stripping or fatigue failure in the field.

Maintenance and Care for Roller Thread Dies

Proper maintenance and care for {thread rolling dies} are essential to prevent premature tool failure and ensure consistent part quality, involving regular inspection for surface wear, precise machine alignment, and the use of high-quality filtration for cooling oils. Because {thread rolling dies} operate under extreme pressure, even minor misalignments or contaminants in the lubricant can lead to catastrophic die cracking or "spalling."

The first rule of maintaining {thread rolling dies} is cleanliness. The rolling environment must be kept free of metal scales and foreign particles. If a small piece of metal is crushed between the die and the workpiece, it can leave a permanent indentation on the {thread rolling dies}, which will then be "printed" onto every subsequent part produced. Implementing a magnetic filtration system for the cooling oil is a highly effective way to extend tool life.

Alignment is the second pillar of care. For cylindrical {thread rolling dies}, the "match" or timing of the dies must be perfect. If the dies are out of phase, they will "cross-thread" the blank, leading to immediate destruction of the die's thread profile. Operators should use high-magnification gauges to check the lead and pitch of the first few parts of every production run to ensure the {thread rolling dies} are seated correctly.

Finally, monitoring the wear patterns on {thread rolling dies} can provide early warnings of machine issues. Uneven wear often indicates that the machine's spindles are not parallel or that the work-rest blade is at the wrong height. By proactively regrinding or replacing {thread rolling dies} before they fail, manufacturers avoid unplanned downtime and protect the integrity of their threading machines.

Maintenance Checklist for Thread Rolling

1. Lubrication: Use high-pressure additives to prevent metal-to-metal welding.

2. Cooling: Ensure a steady flow of oil to dissipate heat from the forming zone.

3. Visual Inspection: Check for pitting, cracks, or "scuffing" on the die threads.

4. Storage: Coat {thread rolling dies} in protective oil and store them in a dry, temperature-controlled environment to prevent rust.

Conclusion

In conclusion, {thread rolling dies} represent an essential technology for any manufacturing operation focused on quality, strength, and efficiency. By leveraging the principles of cold-forming and plastic deformation, these tools produce threads that are structurally superior to those made by any other method. Whether in the form of flat dies for high-speed screw production or cylindrical rollers for heavy-duty bolts, the impact of {thread rolling dies} on modern engineering is profound.

As global competition drives the need for more cost-effective and reliable fasteners, the role of high-precision {thread rolling dies} will only continue to grow. Manufacturers who invest in high-quality die materials and maintain rigorous operational standards will see the benefits in reduced material waste, faster turnaround times, and a reputation for producing components that can withstand the toughest mechanical challenges.

Understanding how to select, operate, and maintain your {thread rolling dies} is the key to unlocking the full potential of thread rolling technology. By prioritizing the structural integrity that only cold-rolled threads can provide, you ensure that your products meet the highest standards of safety and performance in the global marketplace.
