Why is Thread Rolling important process for Lead Screws?

What are the benefits of thread rolling?

The primary benefits of thread rolling include increased tensile strength, enhanced fatigue resistance, a smooth burnished surface finish, and significant material savings during the production of lead screws.

When a lead screw is manufactured using thread rolling dies, the metal fibers are not cut. Instead, they are compressed and redirected to follow the contour of the thread profile. This continuous grain flow creates a structure that is significantly more resistant to stripping and shearing than a cut thread, where the grain ends are exposed and act as stress risers. In B2B industrial applications, this added strength allows for higher torque transmission without the risk of mechanical failure.

Furthermore, the process induces compressive residual stresses at the root of the thread. This is a critical factor in extending the fatigue life of the lead screw, especially in applications involving frequent reversals or high-cycle oscillation. Because the material is cold-worked, the surface hardness of the thread flanks is also increased, providing better wear resistance against the mating nut. This hardening effect ensures that the lead screw maintains its accuracy and backlash characteristics over a longer operational lifespan.

From an economic and performance standpoint, the surface finish achieved by thread rolling dies is typically around 8 to 24 micro-inches. This burnished finish is much smoother than the finish left by a lathe tool or a milling cutter. A smoother surface leads to a lower coefficient of friction, which reduces the energy required for motion and minimizes heat generation during operation. This efficiency is paramount in precision positioning systems and heavy-load actuators.

Key Advantages of the Rolling Process:

1. Material Integrity: No chips are produced, leading to nearly 100% material utilization.

2. Structural Strength: Cold-forming increases the hardness of the screw by up to 30%.

3. Dimensional Stability: Once the thread rolling dies are set, they produce thousands of identical parts with minimal deviation.

4. Production Speed: Rolling is significantly faster than CNC machining or grinding.

Thread Rolling Material and Preparation

Successful thread rolling requires materials with sufficient ductility to undergo plastic deformation and precise blank diameter preparation to ensure the finished thread meets specific tolerance standards.

The choice of material is the first critical step in ensuring the efficacy of thread rolling dies. Generally, materials with an elongation factor of at least 12% are ideal for rolling. Common materials used for lead screws include medium-carbon steels, stainless steels (such as 303 or 316), and certain alloy steels. If a material is too brittle, the pressure from the thread rolling dies will cause the metal to crack or flake rather than flow smoothly into the die serrations. Proper metallurgical selection ensures that the cold-working process enhances the part rather than compromising it.

Preparation of the workpiece is equally vital. Unlike cutting, where you start with a bar the size of the outer diameter (OD), rolling requires a "pitch diameter" blank. This means the starting rod is approximately the size of the final thread's pitch diameter. As the thread rolling dies penetrate the blank, they push the material down to form the roots and force it upward to form the crests. If the blank is even slightly oversized, the excess material will overload the thread rolling dies, leading to premature tool failure or distorted thread profiles.

Additionally, surface preparation such as chamfering the ends of the blank is necessary to allow the thread rolling dies to engage smoothly. Any scale or oxidation on the raw material can also act as an abrasive, reducing the life of the thread rolling dies. Therefore, many high-end lead screw manufacturers use centerless grinding on the blanks prior to rolling to ensure perfect roundness and a clean surface, which ultimately translates to the high-precision performance required in B2B machinery components.

Comparison of Production Blank Requirements

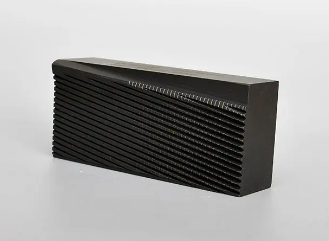

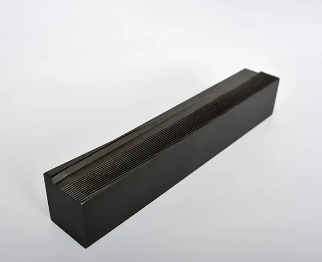

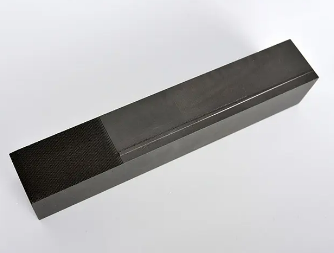

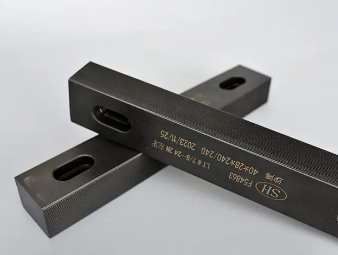

How are Thread Rolling Dies Made?

The production of thread rolling dies involves high-precision engineering, utilizing premium tool steels that undergo vacuum heat treatment and CNC grinding to achieve the exact geometry required for deforming hard metals.

The quality of a lead screw is directly dictated by the quality of the thread rolling dies used in its creation. These dies are typically manufactured from high-grade tool steels like D2, M2, or specialized powder metallurgy steels. These materials are chosen for their exceptional toughness and ability to withstand the immense pressures involved in the cold-forming process. The manufacturing process begins with a blank that is precisely machined and then subjected to rigorous heat treatment to reach a hardness level that allows it to displace the workpiece material without deforming itself.

Once hardened, the thread rolling dies undergo a specialized grinding process. Using CNC thread grinders, the specific profile of the lead screw—whether it be Acme, Trapezoidal, or a custom multi-start thread—is ground into the face of the die. This grinding must be accurate to within microns, as any error in the die profile will be perfectly replicated on every single lead screw produced. For high-volume B2B suppliers, the durability of these thread rolling dies is enhanced through surface coatings like Titanium Nitride (TiN) or Chrome plating, which reduce friction and prevent material "pickup" or galling during the rolling cycle.

The final stage of making thread rolling dies involves inspection through optical comparators and coordinate measuring machines (CMM). It is essential that the lead angle, pitch, and flank angles are perfect. Because lead screws are often used in synchronization (where two screws must move a load perfectly in parallel), the consistency provided by high-quality thread rolling dies is non-negotiable. The engineering of the die ensures that the pressure is distributed evenly across the workpiece, preventing tapering and ensuring the pitch remains constant across the entire length of the screw.

Steps in the Die Manufacturing Process:

1. Steel Selection: Choosing high-carbon, high-chrome tool steels for maximum longevity.

2. Vacuum Heat Treatment: Ensuring uniform hardness throughout the thread rolling dies.

3. Precision Thread Grinding: Creating the master profile with sub-micron accuracy.

4. Surface Treatment: Applying PVD coatings to enhance the wear life of the thread rolling dies.

Types of Thread Rolling Systems

There are several types of thread rolling systems, including flat die rolling, two-roll cylindrical rolling, and three-roll planetary systems, each suited for different lead screw lengths and diameters.

The most common system for producing standard industrial fasteners is the flat die rolling machine. In this setup, one die remains stationary while the other moves in a reciprocating motion. The blank is rolled between the two thread rolling dies, forming the thread in a single stroke. While extremely fast, flat die systems are generally limited to shorter lengths. For the long lead screws used in CNC machines or heavy-duty actuators, cylindrical roll systems are the preferred choice.

Two-roll cylindrical machines use two rotating thread rolling dies that exert hydraulic pressure on the workpiece. This system is highly versatile and allows for "in-feed" rolling (for short threads) or "thru-feed" rolling. In thru-feed rolling, the lead screw blank passes through the thread rolling dies continuously, allowing for the production of screws that are several meters long. This is the standard method for producing the bulk of the B2B market's trapezoidal and Acme lead screws. The precision of the hydraulic synchronization between the rolls is what determines the final accuracy of the screw's lead.

Three-roll systems are often employed for hollow tubes or parts with thin walls. By using three thread rolling dies spaced at 120-degree intervals, the radial pressure is balanced, preventing the workpiece from being crushed or becoming out-of-round. This is particularly important for specialized lead screws used in aerospace or medical devices where weight reduction (hollow shafts) is a priority. Regardless of the system, the fundamental reliance on high-quality thread rolling dies remains constant, as they are the components that ultimately define the geometry and strength of the linear motion drive.

Comparison of Rolling Systems
