How Precision Carbide Tooling Will Benefit Your Die Application

Precision carbide tooling benefits die applications by providing exceptional wear resistance, superior dimensional stability under high pressure, and a significantly longer service life compared to traditional steel components. By integrating Carbide Dies into your production line, you can achieve tighter tolerances over millions of cycles, reduce maintenance costs, and improve the surface finish of your final products.

The transition from steel to carbide is more than just a material upgrade; it is a strategic investment in operational efficiency. This article explores the multifaceted advantages of precision carbide, from its metallurgical properties to its impact on the bottom line. We will examine how these tools perform under stress and why they are the preferred choice for industries ranging from automotive to electronics manufacturing.

Content Overview

Understanding the Role of Carbide Dies

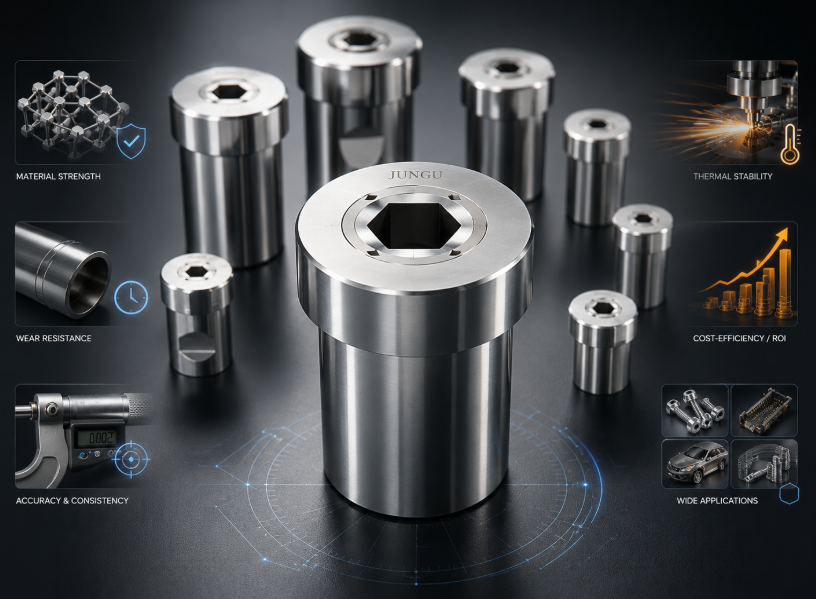

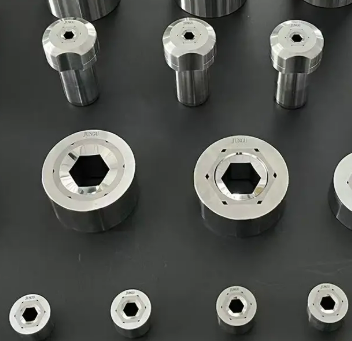

Carbide Dies are specialized industrial tools manufactured from a composite of tungsten carbide particles bonded with a metallic binder, designed to withstand the extreme mechanical stresses of high-volume forming and stamping.

The fundamental strength of these tools lies in their powder metallurgy origin. Unlike melted and cast steels, tungsten carbide is created through a sintering process. This results in a material that ranks just below diamond on the Mohs scale of hardness. In the context of a die application, this means the tool can resist deformation even when subjected to tons of force per square inch. For manufacturers looking to understand the technical differences in material performance, a Tungsten Carbide Dies vs Steel Dies Comparison Guide provides essential insights into how these materials behave under load.

Beyond hardness, the "precision" aspect of this tooling refers to the incredibly tight tolerances achieved during the grinding and polishing phases. Because carbide is so stable, it can be machined to sub-micron levels of accuracy. This precision is maintained throughout the production run, which is vital for components used in sensitive electronics or aerospace assemblies where a variance of even a few thousandths of an inch could lead to catastrophic failure.

Furthermore, the versatility of the binder content (usually cobalt or nickel) allows the tooling to be tailored to specific needs. A lower binder content increases hardness for extreme wear resistance, while a higher binder content improves toughness for applications involving high impact. This ability to customize the material properties makes Carbide Dies adaptable to a vast array of industrial environments, from corrosive chemical processing to heavy-duty metal stamping.

Unmatched Wear Resistance and Tool Longevity

The primary benefit of precision carbide tooling is its ability to resist abrasive and adhesive wear, allowing the die to produce up to 10 to 20 times more parts than standard tool steel before requiring maintenance.

In any die-based operation, wear is the enemy of profit. As a die begins to wear, the friction between the workpiece and the tool increases. This leads to "galling," where material from the workpiece bonds to the tool surface, causing scratches and defects. Carbide’s high resistance to this type of degradation ensures that the tool surface remains smooth. When considering the long-term viability of your production line, referencing a Tungsten Carbide Dies vs Steel Dies Comparison Guide can help quantify the reduction in tool changes you can expect.

The longevity of these tools directly impacts the overall equipment effectiveness (OEE) of a factory. Every time a machine is stopped to replace a worn steel die, the company loses labor hours and production potential. Precision carbide minimizes these interruptions. In industries like beverage can manufacturing or fastener production, where machines run at hundreds of strokes per minute, the durability of the tooling is the only thing keeping the line profitable.

Factors Contributing to Longevity

1. Hardness Retention: Carbide does not soften or "anneal" under the heat of friction like steel does.

2. Surface Finish: Precision-lapped carbide surfaces reduce friction, which in turn reduces the heat and stress that lead to tool failure.

3. Corrosion Resistance: Specially formulated carbide grades can resist the corrosive additives found in many industrial lubricants.

Enhanced Dimensional Accuracy and Consistency

Precision carbide tooling provides superior dimensional accuracy by utilizing a high modulus of elasticity, which ensures that the die remains rigid and does not deflect or "flex" during the high-pressure forming process.

Consistency is the hallmark of quality manufacturing. When using softer materials, the pressure of the press can cause slight elastic deformation in the die itself. While this might be invisible to the naked eye, it results in parts that are slightly out of spec. Because carbide is approximately three times stiffer than steel, it holds its shape perfectly. This rigidity is a core reason why engineers specify Carbide Dies for high-precision stamping and drawing tasks.

This consistency extends across the entire lifecycle of the tool. With steel dies, the first part of the day and the last part of the day may have slightly different dimensions due to wear. With carbide, the millionth part is virtually identical to the first. This eliminates the need for constant machine adjustments and manual inspections, streamlining the quality control process.

To visualize the impact of this stability, consider the following comparison:

Thermal Stability in High-Speed Operations

Carbide tooling maintains its mechanical properties at elevated temperatures, preventing the edge rounding and deformation that typically occurs when steel dies overheat during continuous high-speed production.

During high-speed stamping or wire drawing, the interface between the metal and the die can reach significant temperatures. Standard tool steel is susceptible to tempering, a process where heat reduces the hardness of the metal. Once a die softens, it fails almost immediately. Precision carbide is thermally stable, meaning its "red hardness" allows it to function efficiently even when the tool is running hot. For a deeper dive into how thermal stress affects different materials, the Tungsten Carbide Dies vs Steel Dies Comparison Guide offers a detailed analysis of heat dissipation and structural integrity.

This thermal resilience also allows for faster production speeds. Since the tool isn't at risk of failing due to heat-induced softening, operators can increase the strokes per minute of the press. This increase in throughput, combined with the lack of downtime, creates a massive competitive advantage for shops utilizing advanced carbide components.

Benefits of Thermal Stability

1. Consistent Cooling: Carbide conducts heat differently than steel, often allowing for more efficient cooling cycles in the press.

2. Reduced Thermal Expansion: The low coefficient of thermal expansion in carbide ensures the die hole size doesn't change as the machine warms up.

3. Edge Integrity: Sharp cutting edges remain crisp, preventing the formation of burrs on the workpiece.

Cost-Benefit Analysis: ROI of Carbide Tooling

While the initial purchase price of precision carbide is higher than steel, the total cost of ownership is significantly lower due to a 90% reduction in downtime and the ability to produce millions of additional parts per tool.

Many procurement managers hesitate at the "sticker shock" of carbide. However, a professional analysis reveals that the material cost is only a small fraction of the total production cost. When you factor in the cost of labor for tool changes, the cost of regrinding steel dies, and the cost of scrapped material from worn tools, carbide becomes the economical choice. Many high-volume shops find that their investment in Carbide Dies pays for itself within the first few months of operation.

Furthermore, the scrap reduction is a major factor. In industries working with expensive raw materials like copper, silver, or specialized alloys, producing even a 1% scrap rate due to tool wear is unacceptable. Carbide’s precision ensures that material waste is kept to an absolute minimum, further boosting the return on investment.

Break-Even Comparison

1. Initial Cost: Carbide is typically 3 to 5 times more expensive than steel.

2. Service Life: Carbide lasts 10 to 20 times longer.

3. Maintenance: Steel requires frequent sharpening; carbide requires minimal intervention.

4. Conclusion: Total cost per part produced is significantly lower with carbide.

Specialized Applications for Carbide Dies

Precision carbide is essentially required for applications involving abrasive materials, high-carbon steels, or any process where "zero-defect" production is the target over long manufacturing cycles.

Not every job requires carbide, but for those that do, there is no substitute. In wire drawing, for example, the constant friction of the wire passing through the die would destroy a steel insert in hours. Carbide inserts allow these machines to run for weeks without interruption. Similarly, in the cold heading industry, where bolts and screws are formed at high speeds, the impact resistance and hardness of precision carbide are the only things capable of handling the repetitive shock.

To understand the specific grade requirements for these diverse applications, manufacturers often consult a Tungsten Carbide Dies vs Steel Dies Comparison Guide to match the material toughness to their specific machinery. Whether it is for extrusion, blanking, or coining, the application of precision carbide is a signal of a high-quality, high-efficiency manufacturing operation.

Common Industry Uses

1. Fastener Industry: Used for header dies and thread rolling.

2. Electronics: Used for stamping lead frames and connectors with extreme precision.

3. Medical: Used for forming surgical components that require high surface purity and tight tolerances.

4. Automotive: Used for high-strength steel structural components and fuel injection parts.
