How to calculate thread rolling diameter?

The thread rolling diameter, commonly referred to as the blank diameter, is typically calculated to be slightly smaller than the pitch diameter of the finished thread, determined by using the pitch diameter of the desired thread and subtracting an adjustment factor that accounts for material flow and the specific thread geometry.

Understanding the nuances of this calculation is critical for engineers and machine operators alike. If the blank diameter is too large, it places excessive strain on the machinery and can lead to premature tool failure; if it is too small, the thread will be incomplete, lacking the necessary crest height and structural integrity.

As we delve deeper into this technical guide, we will explore the essential principles of thread formation, the factors involved in sizing your stock material, and the best practices for selecting the right tooling. By optimizing your process, you can achieve superior results with high-precision thread rolling dies designed for screws and bolts, ensuring consistency and longevity in your production line.

Table of Contents

Understanding Thread Rolling Basics

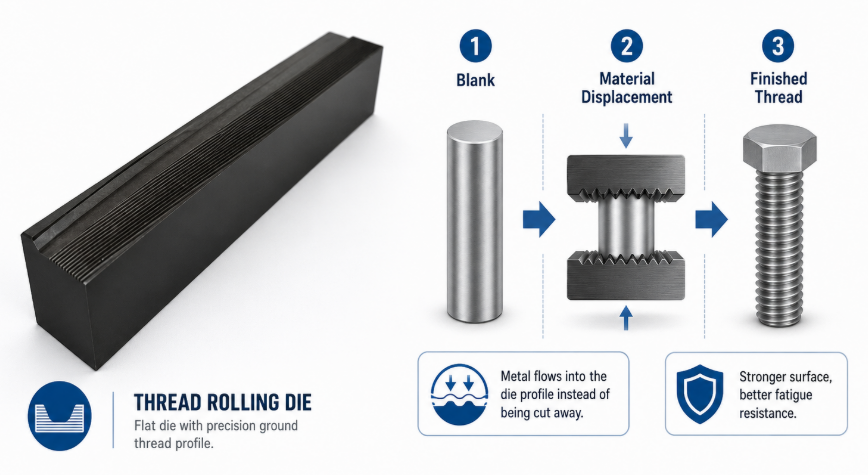

Thread rolling is a chipless cold-forming process where a hardened die deforms a cylindrical blank to create a specific thread profile through material displacement rather than removal.

Unlike traditional thread cutting or grinding, which removes material, thread rolling forces the metal to flow into the cavity of the die. This displacement creates a thread that follows the grain structure of the material, significantly increasing the mechanical strength of the fastener. Because the material is compressed, the resulting surface is smoother and harder, making it ideal for high-stress applications where fatigue resistance is a non-negotiable requirement.

When engaging in this process, the material properties of your blank are just as important as the geometry of the die. As the metal moves during the rolling cycle, it undergoes work hardening. This means the surface of the thread becomes significantly harder than the core, providing excellent wear resistance. To achieve the best results, manufacturers must ensure their blanks are prepared with the correct volume of material, as there is no excess to be turned away.

Using specialized thread tap dies or self-tapping rolling dies allows for greater flexibility in various materials, ranging from mild steel to more exotic alloys. By understanding that the final thread diameter is a product of the initial volume, engineers can predict the displacement more accurately, ensuring that the final part meets precise tolerances every single time.

The Mechanics of Blank Diameter Calculation

The calculation of the blank diameter relies on the principle of constant volume, where the total volume of the blank must equal the volume of the finished threaded part minus any minor elastic deformation factors.

In practice, the blank diameter is generally positioned very close to the pitch diameter of the finished thread. The exact value depends on the international standard of the thread being produced and the specific material's capacity for plastic flow. Because no metal is removed during the process, the metal is simply pushed outward to form the crests and inward to form the roots, meaning the starting cylinder must have a diameter that allows for this migration without creating folds or incomplete peaks.

To determine the ideal blank size, manufacturers consider the desired pitch diameter and adjust based on the material's ductility. Softer materials often require a slightly different approach than high-tensile alloys because the metal flows with different levels of resistance. It is often recommended to use a trial-and-error approach on a small batch to calibrate your specific machine settings against the raw material's behavior.

Advanced manufacturers often utilize self-tapping thread rolling dies and rethreading solutions to fine-tune these dimensions. By adjusting the feed rate and the pressure applied by the dies, you can compensate for slight variations in the raw material's initial diameter. It is essential to conduct test runs on new batches of material, as even small fluctuations in raw wire diameter can lead to significant discrepancies in the finished thread profile.

Critical Variables Affecting Precision

Precision in thread rolling is influenced by the interaction between material hardness, the ductility of the metal, and the specific geometry of the rolling die.

When the material is too hard, the rolling pressure required to form the threads may exceed the load-bearing capacity of the dies. Conversely, if the material is too soft, it may experience excessive swelling or mushrooming, resulting in an inaccurate lead angle. Therefore, the blank diameter must be calculated with the specific mechanical properties of your stock material in mind.

The key variables to monitor include:

• Material Yield Strength: Higher yield strength requires more rolling force and often a slightly larger blank diameter to ensure the crests of the threads fill completely.

• Pitch Size: Larger pitches require a deeper die penetration, which necessitates a more precise calculation of material displacement.

• Surface Finish of the Blank: A rough blank can lead to defects being rolled into the thread.

• Lubrication: Proper lubrication reduces friction between the die and the blank, allowing for smoother material flow and more accurate dimensional control.

Consistent monitoring of these variables ensures that your production remains within the tight tolerances required for high-stakes industries like aerospace, automotive, and heavy construction.

Role of High Quality Tooling

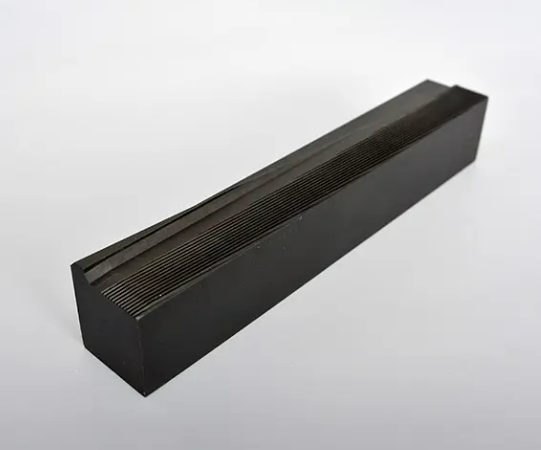

High-quality rolling dies are the most critical investment for ensuring that your calculated diameters translate into accurate, durable threads on the production floor.

Inferior dies will wear down quickly, changing the geometry of the thread profile over time and making your calculations obsolete. Professional-grade dies are engineered with specific tooth profiles that optimize material flow, reducing the stress on the machinery and ensuring that the thread root and crest are formed cleanly without tearing or material folding.

When selecting your equipment, consider the following benefits of high-precision dies:

1. Extended Tool Life: High-grade tungsten or specialized tool steel compositions withstand thousands of cycles before needing refurbishment.

2. Dimensional Consistency: Precision-ground dies maintain tolerances across large production batches, reducing the need for constant recalibration.

3. Superior Surface Integrity: Smoother dies produce threads with lower surface roughness, improving torque control and assembly efficiency.

Troubleshooting Common Rolling Issues

Common issues such as incomplete thread crests or seams are usually the result of incorrect blank diameter calculation or insufficient rolling pressure.

If you notice that the crests of your threads are flat rather than pointed, your blank diameter is likely too small. By slightly increasing the diameter of your blank, you provide the die with enough material to fill the thread cavity completely. If you observe tearing or flaking on the thread surface, it is often a sign of excessive rolling speed or poor lubrication, which prevents the material from flowing plastically.

Follow these troubleshooting tips to maintain quality:

• Incomplete Crests: Increase the blank diameter incrementally and check the profile after every adjustment.

• Seams or Folds: Check the blank diameter; if it is too large, the excess material has nowhere to go, causing it to fold over. Reduce the diameter accordingly.

• Rapid Tool Wear: Inspect the lubrication system and ensure that the die material is compatible with the hardness of the blank being rolled.

Optimizing Manufacturing Efficiency

Optimizing your thread rolling process requires a holistic approach that balances precise calculation logic with high-quality tooling and rigorous machine maintenance.

By documenting the relationship between your blank diameters and the final measured results, you can create a proprietary database of material behavior. This allows for faster setups and fewer scrap parts. Regularly scheduled maintenance, including the cleaning and alignment of the rolling dies, ensures that the forces applied during the process remain uniform throughout the entire length of the fastener.

Ultimately, the goal is to create a repeatable system where the input material is perfectly matched to the capacity of the die. With the right approach to calculation and the use of professional-grade components, your manufacturing facility can achieve the highest standards of quality, reliability, and cost-effectiveness in fastener production.
