The thread rolling process is a chipless cold forming manufacturing method that uses hardened steel Thread Rolling Dies to plastically deform a cylindrical metal blank under extreme pressure, squeezing the metal into a mirror image of the die profile without removing any material.
To fully grasp the implementation of this technique in a high volume production facility, it is essential to explore the specialized tooling configurations, mechanical mechanisms, material prerequisites, and operational parameters. This comprehensive guide breaks down the technical aspects of the process, comparing it with conventional threading methods while detailing the critical role of premium tool sets in achieving long term manufacturing reliability.
Section | Summary |
Mechanical Mechanism of Thread Rolling | This section explains how cold working displaces metal from the roots to the crests, highlighting how the grain flow remains unbroken to maximize component strength. |
Types of Thread Rolling Equipment and Die Configurations | This section examines the structural differences between flat die systems, two-roller circular systems, and three-roller circular systems for varying production requirements. |
Critical Material Selection Parameters | This section defines the material criteria needed for effective cold forming, emphasizing that metals must possess a minimum of twelve percent elongation. |
Thread Rolling vs Thread Cutting | This section compares plastic deformation with subtractive machining, demonstrating why cold formed components exhibit superior tensile and fatigue strength. |
Essential Advantages of High Precision Tooling | This section details how using premium industrial forming components enhances dimensional accuracy, minimizes scrap rates, and reduces the overall cost per part. |
The mechanical mechanism of thread rolling centers on the cold plastic deformation of a metal workpiece as it is compressed between moving, hardened tool steel profiles.
During this operation, the raw material must be rotationally symmetrical and prepared with a precise initial diameter that sits between the major and minor diameters of the final thread profile. When the machine activates, a wedge shaped tool geometry penetrates the surface of the raw metal part under massive force. The specific tool profile applies high localized compressive stresses that quickly exceed the yield strength of the workpiece metal, causing it to flow plastically into the empty cavities of the tool contour.

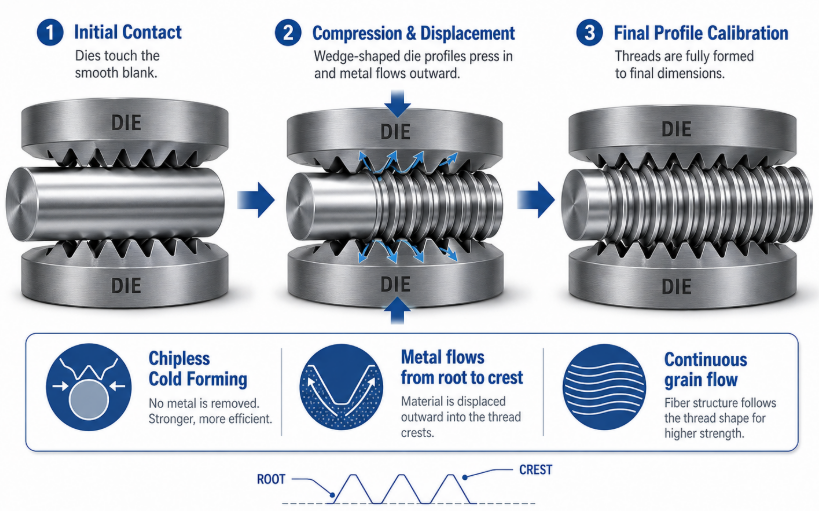

Sequence Stage | Mechanical Action | Material Behavior | Structural Outcome |
1. Initial Contact | Hardened steel dies apply high localized hydraulic or mechanical pressure to the centerless ground blank. | The applied stress quickly exceeds the natural yield strength of the raw metal workpiece. | Microscopic penetration begins on the outer surface of the metal blank. |
2. Compression & Displacement | The wedge shaped die profile penetrates deeper into the rotating metal stock. | Ductile metal is forced out of the root zone and flows radially outward into the empty die cavities. | Thread roots begin to form while displaced metal starts shaping the thread crests. |
3. Final Profile Calibration | The metal completely fills the mirror image geometry of the forming dies under peak pressure. | The metal undergoes localized work hardening, raising its localized hardness and tensile strength. | The thread achieves its final major, minor, and pitch diameter tolerances with a burnished finish. |
As the tool penetrates further, the base material changes its internal structure and undergoes work hardening, which substantially raises its localized hardness and yield strength. The metal that is displaced from what will become the root of the thread is forced radially outward to form the major diameter crest of the thread. This material displacement occurs in a continuous, unbroken line that follows the thread contours precisely.
Because the metal is shifted rather than cut, the inherent grain structure of the raw material is never severed or interrupted. The grain lines are compressed and redirected along the contours of the thread profile, creating a burnished surface flank that is completely free from microscopic tears, tool marks, or sharp surface imperfections. These smooth root radiuses eliminate structural stress risers, ensuring that any mechanical failures are forced to take place across the continuous grain flow rather than along it.
The types of thread rolling equipment and die configurations are divided into flat die reciprocating systems, two-die circular machines, and three-die planetary or cylindrical arrangements.

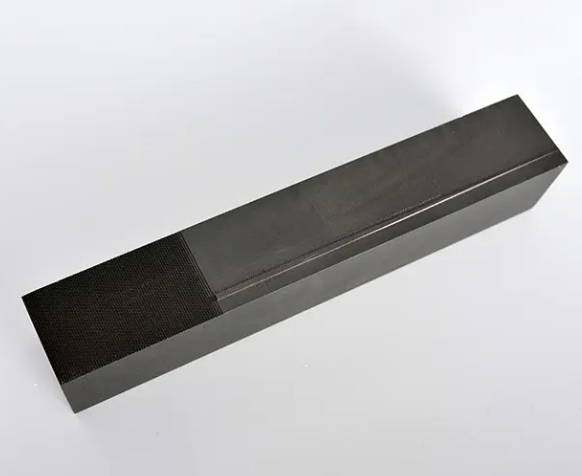

Flat die setups utilize a stationary rectangular tool plate and a matching moving rectangular tool plate to roll the cylindrical metal blank between them. The moving tool plate travels in a reciprocating linear motion, completing a single complete thread form with each forward stroke of the ram. This specific mechanical configuration is highly favored in automated high volume fastener production facilities due to its simple structural tracking and remarkably rapid parts per minute manufacturing throughput.
For specialized industrial applications requiring longer thread forms or higher precision on thicker materials, circular systems are utilized. A two-die circular system utilizes two parallel rotating shafts that mount cylindrical tool sets, which press into the workpiece as it rests on a supporting blade. This setup supports both infeed operations for short thread sections and thru-feed operations for rolling continuous long rods that exceed the width of the tool faces.
Alternatively, a three-die circular arrangement utilizes three separate rollers positioned at 120 degree angles around the centerline of the workpiece, providing perfect radial balance that eliminates the need for a supporting blade and prevents thin walled tubes or long rods from bending during processing. For facilities focusing on producing heavy duty structural bolts and custom threaded components, utilizing premium Thread Rolling Dies on these circular or flat machines ensures excellent dimensional consistency over millions of production cycles.
The critical material selection parameters require that any metal chosen for thread rolling must possess sufficient ductility, demonstrating an elongation factor of at least twelve percent.
Not all structural metals can handle the extreme localized plastic deformation required by the cold forming process. Brittle materials, such as standard gray cast iron or heavily hardened alloy steels, will crack, fracture, or flake under high pressure rather than flow smoothly into the tool cavities. The formability index of a specific metal is dictated by its crystalline structure and chemical composition, with low to medium carbon steels, stainless steel alloys, brass, and aluminum being the most suitable candidates for high quality results.
Material Group | Elongation Factor (%) | Rollability Index | Primary Application |
Low Carbon Steel | 15 to 25 | Excellent | Standard Fasteners, Industrial Bolts |
Medium Carbon Alloy | 12 to 18 | Good | High Tensile Automotive Studs |
Austenitic Stainless | 35 to 50 | Moderate | Aerospace Lead Screws, Marine Equipment |
Brass and Aluminum | 15 to 35 | Excellent | Precision Electronics, Lightweight Components |
Gray Cast Iron | Under 2 | Poor (Unsuitable) | Large Structural Castings (Must be Cut) |
When selecting raw stock, the presence of certain chemical additives like sulfur, lead, or bismuth must be strictly monitored. While these elements act as excellent lubricants during subtractive thread cutting operations, they cause severe issues during cold forming by triggering material flaking, microscopic slivers, and premature structural splitting along the thread flanks. Furthermore, the blank stock must be centerless ground to tight tolerances, as a minute variation of 0.001 inches in the initial blank diameter will cause an erratic 0.003 inch alteration in the final thread major diameter.
Thread rolling vs thread cutting represents the difference between a high speed chipless deformation process and a traditional subtractive manufacturing method that removes material.
Thread cutting utilizes a sharp edged tool point or a cutting chaser to physically slice into a metal rod, carving out a helical groove to form the thread profile. This subtractive action inherently severs the natural grain structure of the metal, leaving thousands of open grain ends along the thread flanks and roots. These exposed grain ends and the resulting microscopic cutter marks act as severe stress concentrations, which can easily lead to premature fatigue crack propagation and thread stripping under heavy dynamic loads.
Feature Comparison | Thread Cutting Method | Thread Rolling Method |
Material Structural Action | Subtractive (Slices away waste chips to carve out the helical groove) | Displacement (Plastically deforms metal under extreme pressure) |
Internal Metal Grain Structure | Severed (Leaves broken grain ends along the thread flanks) | Continuous (Grain lines follow the contour of the thread profile) |
Surface Tensile Strength | Unchanged (Retains base properties of raw material) | Increased (Improves strength by up to thirty percent via work hardening) |
Fatigue Fracture Resistance | Standard (Micro-cutter marks can act as stress risers) | Superior (Compressive residual stresses prevent crack propagation) |
Manufacturing Scrap Waste | High (Generates large quantities of metal turnings and chips) | Zero (Chipless process preserves full material mass) |
In sharp contrast, the cold forming process uses high pressure manipulation to guide the grain lines smoothly along the contours of the thread profile, resulting in a burnished surface that improves static tensile strength by up to thirty percent. The extreme compression applied during forming also improves material fatigue resistance by fifty to seventy-five percent, as the surface layers are left under helpful compressive residual stresses.
From a production efficiency standpoint, a cold rolling machine can form an entire thread profile in a single rapid pass, achieving cycle times up to ten times faster than multi-pass single point thread cutting operations. Additionally, because rolling is completely chipless, it eliminates the need for expensive scrap chip recycling systems and material waste cleanup. For high output manufacturing operations that require combining internal tapping and external self tapping thread forming, utilizing a specialized industrial component like a Self-tapping Thread Rolling Die allows operators to form strong, precise fasteners in a single, highly efficient setup.
The essential advantages of high precision tooling include long term dimensional accuracy, excellent surface finish control, and a significant reduction in the cost per manufactured part.
Because thread rolling operations subject tools to extreme, repetitive hydraulic forces and intense abrasive friction, the quality of the die material directly dictates the reliability of the entire production line. Premium forming dies are manufactured from advanced tool steel grades that undergo precise vacuum heat treatment and meticulous post hardness grinding. This rigorous manufacturing process ensures the tooling maintains its exact mirror image geometry without warping, chipping, or wearing down prematurely during long high speed production runs.
Using substandard tooling often leads to common defects like overfilled thread crests, mismatched helix tracking, and jagged slivers along the thread flanks, all of which damage structural integrity and lead to expensive part rejections. High precision tool sets maintain structural stability across hundreds of thousands of cycles, keeping the pitch diameter and major diameter firmly within specified tolerances.
For restoration projects or specialty manufacturing fields that work with pre hardened components or custom thread sizes, deploying heavy duty tool solutions such as a dedicated Rethreading Dies / Self-tapping Thread Rolling Die set provides operators with the durability needed to shape demanding materials while maintaining a clean, burnished surface finish.
