What does a carbide sizing die do?

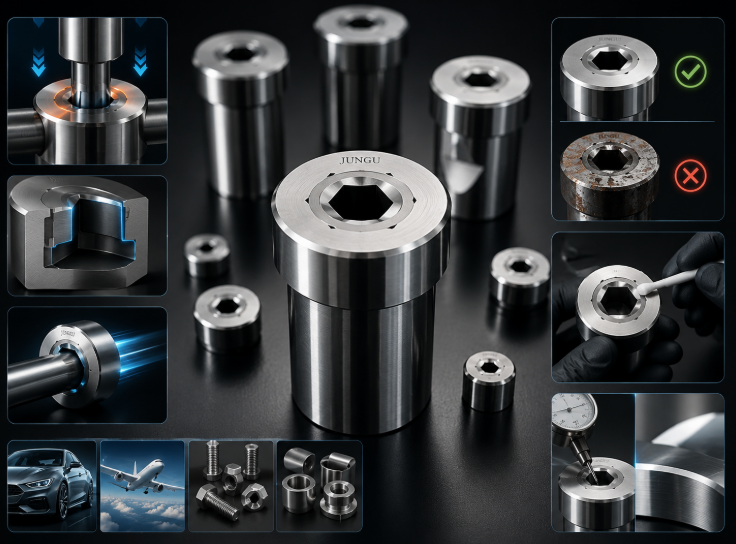

A carbide sizing die is a high-precision tool featuring an ultra-hard tungsten carbide insert designed to compress and reshape metal casings or workpieces to specific dimensions. Unlike standard dies, it possesses a surface hardness that allows for resizing without the mandatory use of case lubricant in many applications, significantly reducing friction and wear during the manufacturing process.

Understanding how these tools function requires a deep dive into the metallurgy of Carbide Dies and their specific mechanical advantages. This article explores the internal mechanics, benefits, and maintenance protocols of these essential industrial components to help you optimize your production workflow.

Table of Contents

• Core Functionality of Sizing Dies

• The Material Advantage of Tungsten Carbide

• How Carbide Dies Improve Efficiency

• Key Industrial Applications

• Comparing Carbide and Steel Options

• Maintenance and Longevity Best Practices

Core Functionality of Sizing Dies

The primary role of a sizing die is to force a metal object into a precision-ground internal chamber to reduce its external diameter and ensure it meets strict dimensional tolerances.

When metal is subjected to high pressure—such as during the firing of a cartridge or the drawing of a wire—it often expands or deforms. A sizing die acts as a mechanical "reset button." The workpiece is pushed into the die, where the internal walls, crafted from Carbide Dies, exert uniform pressure. This process, often referred to as full-length resizing, ensures that the component will fit perfectly into its designated assembly or chamber without sticking or failing.

Beyond mere diameter reduction, these dies often perform secondary functions such as depriming or neck expansion. The internal geometry is engineered with extreme precision, often measured in microns, to ensure that every part coming off the line is identical. This level of consistency is critical in industries where even a 0.001-inch deviation can lead to catastrophic mechanical failure. By using , manufacturers can visualize how the lead-in taper guides the material smoothly into the sizing ring.

For those interested in the technical specifications of these tools, checking a comprehensive Carbide Dies product list can provide insights into the various diameters and tolerances available for modern industrial applications.

The Material Advantage of Tungsten Carbide

Tungsten carbide is an inorganic compound that is approximately twice as stiff as steel, offering unparalleled resistance to deformation and abrasive wear in high-speed production environments.

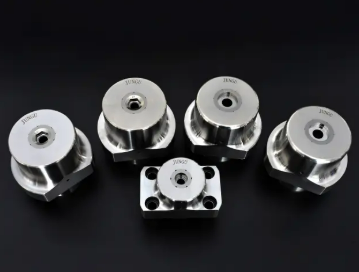

The "carbide" in a sizing die is actually a ring or insert pressed into a steel die body. This insert is made from a combination of tungsten and carbon atoms, often bonded with a metallic binder like cobalt. This results in a material that sits just below diamond on the Mohs scale of hardness. In the context of metalworking, this means the die surface will not scratch, gall, or wear down even after processing tens of thousands of workpieces.

The thermal stability of tungsten carbide is another significant factor. During high-speed manufacturing, friction generates substantial heat. While standard steel may soften or expand under thermal stress, carbide remains stable, maintaining the accuracy of the Carbide Dies throughout long production runs. This stability ensures that the first part produced in a shift is identical to the last part produced eight hours later.

When evaluating material choices, many engineers refer to a Tungsten Carbide Dies vs Steel Dies Comparison Guide to understand the long-term ROI. While the initial investment in carbide is higher, the reduction in downtime and replacement costs makes it the more economical choice for professional operations.

How Carbide Dies Improve Efficiency

The use of carbide inserts eliminates the need for case lubrication in most straight-walled resizing tasks, which streamlines the production cycle by removing the lubrication and subsequent cleaning steps.

In traditional metal resizing, lubrication is a bottleneck. Steel-on-steel contact creates high friction, which can lead to "stuck" parts if not properly greased. With Carbide Dies, the coefficient of friction is so low that the metal slides through the die with minimal resistance. For high-volume manufacturers, this means they can move directly from one stage of production to the next without pausing to apply or remove oils, which can also prevent contamination of the final product.

Furthermore, the longevity of these tools contributes to "set-and-forget" manufacturing. Once a die is calibrated within a press, it rarely needs adjustment because the internal dimensions do not change due to wear. This consistency reduces the frequency of quality control rejects.

Efficiency Benefits Breakdown:

1. Reduced Labor: No need to manually apply lube to every workpiece.

2. Cleaner Environment: Eliminates the mess and hazardous waste associated with industrial lubricants.

3. Faster Cycle Times: Increased strokes per minute in automated presses.

4. Consistency: Minimal thermal expansion ensures part uniformity.

To see the variety of efficiency-focused tools available, you can browse a specialized Carbide Dies catalog to match the tool to your specific machinery.

Key Industrial Applications

Carbide sizing dies are utilized across various sectors, including automotive manufacturing, aerospace engineering, and ammunition production, where high-volume precision is a non-negotiable requirement.

In the automotive industry, small bushings, fasteners, and fuel system components are often finished using these dies to ensure airtight seals and perfect mechanical fits. The aerospace sector demands even higher levels of scrutiny, utilizing Carbide Dies to shape high-strength alloys that would quickly degrade a standard steel tool. The ability to work with tough materials like titanium or stainless steel makes carbide the industry standard for flight-critical hardware.

The ammunition industry is perhaps the most well-known user of this technology. Reloaders and commercial manufacturers use these dies to resize brass casings. Because brass is softer than carbide, the die can reshape the casing thousands of times without showing signs of wear. This application highlights the importance of the Tungsten Carbide Dies vs Steel Dies Comparison Guide, as it explains how the surface finish of the die affects the final appearance of the brass.

Comparing Carbide and Steel Options

While steel dies are cost-effective for low-volume or hobbyist use, carbide dies offer a lower total cost of ownership in professional settings due to their extreme durability and reduced maintenance needs.

When deciding between these two options, one must look at the "wear life." A steel die may begin to show dimensional changes after a few thousand cycles, especially when working with abrasive materials. In contrast, Carbide Dies can often process hundreds of thousands, or even millions, of parts before needing replacement. This makes carbide the superior choice for automated production lines where stopping the machine to replace a worn die costs more in lost time than the tool itself.

It is important to note that carbide is a ceramic-like material, meaning it is brittle. While it resists wear, it can crack if dropped on a hard surface or subjected to sudden lateral impacts. Therefore, proper handling is essential. Detailed insights on these trade-offs can be found in the Tungsten Carbide Dies vs Steel Dies Comparison Guide.

Maintenance and Longevity Best Practices

To maximize the lifespan of a carbide die, it should be kept free of grit and debris, as even small particles of carbon or metal shavings can act as abrasives that eventually mar the mirror-polished surface.

Maintenance for Carbide Dies is relatively simple but must be consistent. After each production run, the internal bore should be wiped with a clean, lint-free cloth. While lubrication isn't always needed for the resizing process itself, a light film of oil on the external steel body of the die is recommended to prevent rust. The carbide insert itself will not rust, but the surrounding steel housing is susceptible to environmental moisture.

If a workpiece becomes stuck—which is rare with carbide—never use hardened steel tools to pry it out. Using a steel punch against a carbide surface can cause the insert to chip or shatter. Instead, use specialized removal tools designed to pull the workpiece out through mechanical leverage.

Maintenance Checklist:

1. Visual Inspection: Check for chips or cracks in the carbide ring before every use.

2. Cleaning: Use a solvent-soaked swab to remove any metallic buildup from the internal walls.

3. Storage: Keep dies in a padded, moisture-controlled environment to prevent accidental impact damage.

4. Verification: Periodically check the dimensions of the finished parts using a micrometer to ensure the die is still within spec.

For those looking to upgrade their current tooling setup, reviewing the Tungsten Carbide Dies vs Steel Dies Comparison Guide can provide a roadmap for transitioning from traditional steel to high-performance carbide solutions.
