Benefits of Using Threading Dies over Single Point Threading

The primary advantage of utilizing thread rolling dies over single point threading is the significant improvement in material strength and structural integrity, coupled with superior production speed and material utilization.

This comprehensive guide explores the fundamental differences between these two manufacturing approaches. By examining production output, mechanical properties, and surface finish, we will demonstrate why industries transitioning to high-precision forming solutions are achieving better results and lower cost-per-part ratios.

Table of Contents

Understanding the Process Differences

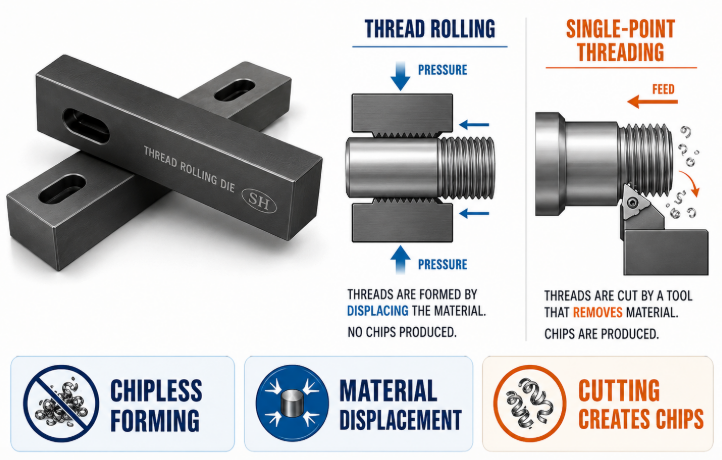

The fundamental difference lies in the fact that thread rolling is a chipless cold-forming process that displaces material to form threads, whereas single point threading is a subtractive machining process that cuts away material.

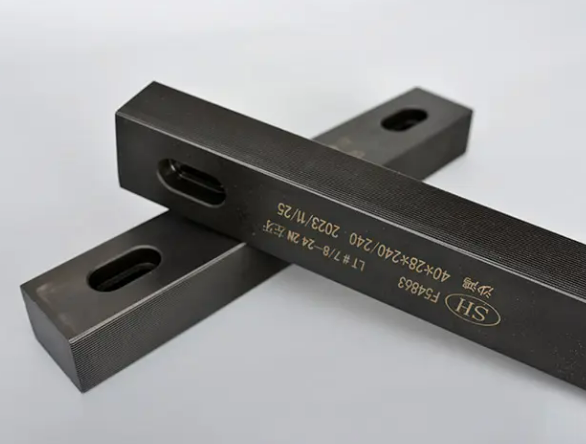

Thread rolling involves passing a cylindrical blank between hardened, high-precision dies—often referred to as High-Precision Thread Rolling Dies for Screws and Bolts—that impress the thread profile into the workpiece. This mechanical deformation does not remove any material; instead, it rearranges the grain structure of the metal to follow the contour of the threads. This stands in stark contrast to single point threading, which typically requires a CNC lathe and a single-point tool to manually or automatically cut the thread form, inevitably creating chips and breaking the continuity of the grain flow.

When evaluating the two, it is crucial to understand that single point threading is often selected for its flexibility, particularly in small-batch production or when working with extremely hard materials that may crack during deformation. However, for high-volume manufacturing, the rigidity of the tooling used in rolling provides a level of consistency that manual or CNC cutting cannot match. As material is displaced rather than severed, the process acts as a localized forging operation, effectively increasing the density of the metal at the root of the thread.

Modern manufacturing facilities often integrate advanced tooling solutions to streamline this transition. For instance, incorporating specialized Self-tapping Thread Rolling Die Rethreading Dies into a production line can drastically improve the versatility of the machinery. By shifting the focus from cutting to forming, manufacturers can maintain tighter control over the initial blank dimensions, ensuring that the volume of displaced material creates a perfectly uniform thread profile every time the dies engage the workpiece.

Enhanced Mechanical Strength

Threads produced by rolling dies are significantly stronger than those created by single point cutting because the cold-working process increases the tensile strength, yield strength, and fatigue resistance of the material.

During the rolling process, the metal blank undergoes a physical transformation. Because the material is squeezed into the desired shape, the grain flow of the metal remains continuous throughout the thread. In single point threading, the cutting tool acts as a knife, severing the metal fibers and leaving the thread roots vulnerable to stress concentrations. By contrast, the compression provided by rolling dies creates a residual compressive stress in the thread roots, which is the primary reason why rolled threads exhibit superior fatigue life under cyclic loading conditions.

Furthermore, the work-hardening effect that occurs during the rolling process improves the surface hardness of the threaded component. This is particularly beneficial for fasteners that will undergo high levels of torque or vibration. The compressed, dense structure of the metal at the thread surface ensures that the fasteners remain secure and are less likely to experience thread stripping or loosening over time. This makes rolled threads the industry standard for automotive, aerospace, and structural engineering applications.

For companies looking to optimize their assembly processes, utilizing high-quality tooling is paramount. Deploying durable Thread Tap Die Self-tapping Thread Rolling Die units allows for the creation of threads that can withstand harsh operating environments without compromising the integrity of the base material. When the metal structure is preserved and reinforced rather than disrupted, the resulting components provide greater reliability for critical assemblies where failure is not an option.

Superior Production Efficiency

Thread rolling is vastly more efficient than single point threading, capable of producing parts at rates dozens of times faster, which makes it the optimal choice for high-volume manufacturing environments.

The speed advantage of thread rolling stems from the nature of the operation. A single point threading process requires multiple passes of the cutting tool to reach the final depth, which consumes significant cycle time and generates heat that can affect tool wear. In contrast, a thread rolling machine can complete the entire threading process in a single, rapid cycle. The dies engage the blank, exert pressure, and retract, often completing the entire operation in a fraction of a second.

This high-speed capability is vital for industries operating on tight margins where volume is the primary driver of profitability. Because the process is largely automated and requires minimal intervention once the dies are set, it significantly reduces the human-machine interaction time. Manufacturers can produce thousands of screws, bolts, and threaded rods per hour, far exceeding the output potential of traditional CNC lathe operations.

Moreover, the repeatability of the process is unmatched. Once the machine is calibrated with the correct dies, the consistency between the first part and the ten-thousandth part remains exceptionally high. This consistency reduces the frequency of quality control inspections and minimizes scrap rates. When production schedules are aggressive, the ability to rely on the consistent, rapid throughput of rolling technology becomes a competitive advantage that can determine the success of a manufacturing firm in a global market.

Material Utilization and Waste Reduction

Because thread rolling is a chipless process, it offers a near 100 percent material utilization rate, eliminating the waste associated with the metal chips generated by single point cutting.

In single point threading, a significant portion of the raw material is transformed into chips (swarf). This represents a direct financial loss, especially when working with expensive alloys such as stainless steel, titanium, or high-performance superalloys. In a high-volume facility, the cumulative weight of discarded metal can amount to tons of lost profit annually. Thread rolling solves this by displacing the material rather than removing it, meaning the blank diameter is smaller than the final crest diameter of the thread, essentially creating "free" material growth.

Beyond the raw material savings, there are secondary benefits to a cleaner production environment. The absence of metal chips means less time spent on cleaning the machinery and managing waste disposal. Chips can also interfere with the cutting process itself, causing tool damage or surface blemishes if not managed correctly. By eliminating chips, manufacturers reduce the maintenance burden and create a safer, more predictable production floor.

Efficiency in material usage also contributes to sustainability goals. Businesses are increasingly held accountable for their waste output, and transitioning to processes that utilize the entirety of the input stock aligns with modern circular economy principles. By optimizing material consumption, manufacturers not only reduce their environmental impact but also lower their overhead, allowing for more aggressive pricing strategies in a crowded marketplace.

Surface Finish and Dimensional Accuracy

Rolled threads consistently achieve a smoother surface finish and better dimensional tolerance stability than cut threads, as the polished surface of the dies imparts a mirror-like finish to the metal.

The contact between the hardened rolling dies and the workpiece serves to burnish the metal, resulting in a finish that is often much smoother than what can be achieved by a cutting tool. A smoother surface reduces friction during assembly, which is critical for fasteners that require specific torque-tension relationships. When a thread is cut, the tool marks left by the single point bit can act as stress risers, but the rolling process effectively smooths these out, providing a high-quality aesthetic and functional finish.

Regarding dimensional accuracy, the stability of thread rolling is superior for long-run production. CNC cutters are susceptible to tool wear throughout the life of the insert; as the cutting edge dulls, dimensions drift, requiring constant monitoring and offsets. Rolling dies are made from premium tool steels that maintain their precision over extremely long production cycles. The thread profile is locked into the geometry of the dies, ensuring that every part meets the specified pitch and major/minor diameters with minimal deviation.

• Improved Load Distribution: The smooth surface minimizes galling.

• Uniformity: Consistent geometry across entire batches.

• Reduced Inspection Times: High repeatability means fewer random checks.

These factors combined ensure that the assembly line proceeds smoothly without the disruptions caused by out-of-tolerance parts, saving both time and resources during the final integration of the components.

Long-term Economic Impact

The transition to thread rolling represents a lower total cost of ownership, as the combination of longer tool life, reduced labor requirements, and zero material waste leads to a significant decrease in cost-per-part.

While the initial investment in high-quality rolling dies may seem higher than purchasing single-point cutting inserts, the longevity of the tooling provides a massive return on investment. A single set of rolling dies can produce hundreds of thousands of parts before requiring sharpening or replacement, whereas a cutting insert may need changing after just a few hundred pieces. This reduction in tool change frequency minimizes machine downtime, allowing for more "green light" production time.

Additionally, the energy savings associated with faster cycle times and reduced mechanical stress on machines contribute to lower overhead costs. When businesses calculate the cumulative effect of higher throughput, lower scrap rates, and extended tooling life, the choice becomes clear. Industrial manufacturers aiming for growth must prioritize these efficiencies to remain profitable and competitive.

In summary, for any business focused on mass-producing threaded hardware, adopting thread rolling technology is a strategic imperative. By leveraging the physical benefits of cold-forming and the economic benefits of high-speed manufacturing, producers can deliver a higher-quality product at a lower cost, securing their position as reliable suppliers in the precision manufacturing sector.
